干簧继电器

制造商	系列	包装	产品状态	安装类型	线圈电压	触点形式	触点额定值（电流）	切换电压	线圈电流	线圈类型	特性	端接样式	密封等级	必须动作电压	必须释放电压	动作时间	释放时间	工作温度	触点材料
Altech Corporation Archimedes Controls Bright Toward Industrial Celduc Inc. Computer Components Inc Comus International Coto Technology Littelfuse Inc. NI Sensata Technologies Standex-Meder Electronics TE Connectivity Potter & Brumfield Relays US Digital	* - 1240 2 200 2200 2270 2300 2362 2370 2600 2900 2970 30 3350 3500 3563 3570 3572 3600 400 5500 7000 8000 8200 8500 8L 9000 9000, Spartan 9006 9007, Spartan 9011 9012 9091 9092 9094 9104 9117 9200 9300 9400 9900 9913 B41 BE BF BFH BFM BFM-CW BFS BH BT BU CGSM CRR D D-HR D1 D200 DA DB DIL DIP DR DSS4 DSS7 H HE HE3300 HE3600 HE700 HG HI HM JWD JWS KT LI LP MH MRE MRX MS MSIP MSS MSS2 MSS4 MVS2 NP OMR, OEG PRMA RM S S1 S2 S3 S4 S8 S8-HR SHV SIL SIL HV SIP SUL UMS V23100-V4, AXICOM V23100-V6, AXICOM VN-2A VN-4A XSIP XXHV	- Bag Box Bulk Tape & Reel (TR) Tray Tube	Active Discontinued at Masstock Electronics Not For New Designs Obsolete	- Chassis Mount Surface Mount Through Hole	- 12VDC 15VDC 24VDC 3.3VDC 35VDC 3VDC 5VDC 6VDC	- 3PDT (3 Form C) 3PST-NO (3 Form A) 4PST-NO (4 Form A) 6PST-NO (6 Form A) 8PST-NO (8 Form A) DPDT (2 Form C) DPST-NC (2 Form B) DPST-NO (2 Form A) DPST-NO/NC (1 Form A, 1 Form B) SPDT (1 Form C) SPDT (1 Form D) SPST-NC (1 Form B) SPST-NO (1 Form A) SPST-NO (1 Form A) x 2 SPST-NO (1 Form A) x 4	- 1 A 100 mA 2 A 200 mA 240 mA 250 mA 250 mV 3 A 300 mA 350 mA 400 mA 500 mA 700 mA 750 mA	- 10000VAC, 10000VDC - Max 1000VAC, 1000VDC - Max 1000VDC - Max 100VAC, 100VDC - Max 100VDC - Max 120VAC, 170VDC - Max 120VAC, 60VDC - Max 120VDC - Max 125VAC, 125VDC - Max 140VAC, 200VDC - Max 1500VDC - Max 150VAC, 150VDC - Max 150VDC - Max 170VAC, 170VDC - Max 170VDC - Max 175VAC, 175VDC - Max 175VDC - Max 180VAC, 180VDC - Max 2.5V 200VAC, 200VDC - Max 200VDC - Max 20VAC, 20VDC - Max 240VDC - Max 24VDC - Nom 2500VAC, 2500VDC - Max 250VAC - Max 28VAC, 28VDC - Max 28VDC - Max 300VAC, 300VDC - Max 300VAC, 350VDC - Max 300VDC - Max 30VAC, 30VDC - Max 3500VAC, 3500VDC - Max 350VDC - Max 5000VAC, 5000VDC - Max 5000VDC - Max 500VAC, 500VDC - Max 7000VAC, 7000VDC - Max 7500VAC, 7500VDC - Max 7500VDC - Max	- 1.2 mA 10 mA 10.4 mA 10.9 mA 100 mA 11 mA 11.1 mA 11.2 mA 11.4 mA 11.5 mA 12 mA 12.5 mA 120 mA 125 mA 126 mA 126.3 mA 13 mA 13.3 mA 13.4 mA 13.5 mA 13.7 mA 131.6 mA 132 mA 14 mA 14.1 mA 14.3 mA 14.5 mA 15 mA 15.4 mA 15.5 mA 16 mA 16.7 mA 167 mA 17.1 mA 17.5 mA 17.8 mA 17.9 mA 178.6 mA 179 mA 18 mA 18.5 mA 18.8 mA 19.2 mA 19.3 mA 2.4 mA 20 mA 20.8 mA 21.7 mA 21.8 mA 22 mA 22.7 mA 22.8 mA 23.1 mA 24 mA 24.5 mA 240 mA 25 mA 25.9 mA 26 mA 26.7 mA 27 mA 27.8 mA 27.9 mA 28.6 mA 30 mA 30.7 mA 30.8 mA 31 mA 31.3 mA 312.5 mA 313 mA 33.3 mA 33.4 mA 34.3 mA 35.2 mA 35.3 mA 35.7 mA 35.8 mA 4 mA 4.3 mA 40 mA 41.7 mA 42.7 mA 45.5 mA 46.2 mA 47.1 mA 47.6 mA 48 mA 5 mA 5.6 mA 5.7 mA 50 mA 51.6 mA 52.2 mA 55.6 mA 6 mA 6.2 mA 6.3 mA 6.4 mA 6.5 mA 6.7 mA 6.9 mA 60 mA 62 mA 62.5 mA 63 mA 66.7 mA 67 mA 68.6 mA 69 mA 7.3 mA 7.5 mA 7.8 mA 71.4 mA 77 mA 8 mA 8.3 mA 80 mA 83.3 mA 9 mA 9.1 mA 9.3 mA 9.8 mA 90.9 mA 91 mA	- Latching, Dual Coil Non Latching	- Coaxial Shield Diode Diode, Electrostatic Shield Diode, EMI Shielded Diode, Magnetic Shield Electrostatic Shield EMI Shielded Magnetic Shield	- Axial BGA Gull Wing J Lead PC Pin PC Pin, Solder Turret PC Pin, Wire Leads Quick Connect - 0.250" (6.3mm) SMD (SMT) Tab Solder Turret Wire Leads	- Sealed - Fully Sealed - Hermetically	- 10.5 VDC 10.8 VDC 11 VDC 14 VDC 16 VDC 16.4 VDC 16.8 VDC 17.5 VDC 17.6 VDC 18 VDC 19 VDC 19.2 VDC 2 VDC 2.1 VDC 2.25 VDC 2.3 VDC 2.5 VDC 2.9 VDC 20 VDC 3 VDC 3.5 VDC 3.6 VDC 3.7 VDC 3.75 VDC 3.8 VDC 4 VDC 4.2 VDC 4.5 VDC 5 VDC 6.7 VDC 7 VDC 7.1 VDC 8 VDC 8.4 VDC 8.5 VDC 8.6 VDC 8.8 VDC 9 VDC 9.6 VDC	- 0.28 VDC 0.4 VDC 0.45 VDC 0.5 VDC 0.52 VDC 0.6 VDC 0.65 VDC 0.7 VDC 0.75 VDC 0.8 VDC 1 VDC 1.2 VDC 1.25 VDC 1.3 VDC 1.4 VDC 1.5 VDC 1.8 VDC 2 VDC 2.2 VDC 2.25 VDC 2.4 VDC 2.5 VDC 2.9 VDC 3 VDC 3.5 VDC 3.6 VDC 4 VDC	- 0.1 ms 0.2 ms 0.25 ms 0.3 ms 0.35 ms 0.4 ms 0.5 ms 0.55 ms 0.6 ms 0.7 ms 0.75 ms 0.8 ms 1 ms 1.1 ms 1.2 ms 1.25 ms 1.5 ms 1.75 ms 2 ms 2.5 ms 200 µs 3 ms 3.2 ms 300 µs 4 ms 400 µs 6 ms 650 µs 700 µs 750 µs	- 0.05 ms 0.07 ms 0.1 ms 0.15 ms 0.2 ms 0.25 ms 0.3 ms 0.35 ms 0.4 ms 0.5 ms 0.7 ms 1 ms 1.25 ms 1.5 ms 1.6 ms 100 µs 2 ms 2.5 ms 20 µs 200 µs 3 ms 300 µs 400 µs 50 µs 600 µs	- -20°C ~ 125°C -20°C ~ 55°C -20°C ~ 65°C -20°C ~ 70°C -20°C ~ 80°C -20°C ~ 85°C -25°C ~ 70°C -25°C ~ 85°C -30°C ~ 70°C -35°C ~ 85°C -38°C ~ 75°C -38°C ~ 85°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 125°C -40°C ~ 65°C -40°C ~ 70°C -40°C ~ 80°C -40°C ~ 85°C -55°C ~ 85°C	- Rhodium (Rh) Rhodium (Rh), Ruthenium (Ru) Ruthenium (Ru) Tungsten (W)

全部重置

全部应用

结果

制造商料号	库存情况	价格	数量	数据手册	系列	包装	产品状态	安装类型	线圈电压	触点形式	触点额定值（电流）	切换电压	线圈电流	线圈类型	特性	端接样式	密封等级	必须动作电压	必须释放电压	动作时间	释放时间	工作温度	触点材料
8L61-12-111 RELAY REED SPDT 250MA 12V Coto Technology	320	-	立即询价	数据手册	8L	Bulk	Active	Surface Mount	12VDC	SPDT (1 Form C)	250 mA	100VAC, 100VDC - Max	24 mA	Non Latching	Diode, Electrostatic Shield	J Lead	-	9.6 VDC	1 VDC	1 ms	1 ms	-20°C ~ 85°C	-
9092-12-11 RELAY REED DPST 500MA 12V Coto Technology	2,199	-	立即询价	数据手册	9092	Tube	Active	Through Hole	12VDC	DPST-NO (2 Form A)	500 mA	200VAC, 200VDC - Max	16 mA	Non Latching	Diode, EMI Shielded	PC Pin	-	9 VDC	1 VDC	0.75 ms	0.5 ms	-20°C ~ 85°C	-
JWD-107-5 RELAY REED SPST 500MA 5V TE Connectivity Potter & Brumfield Relays	5,588	-	立即询价	数据手册	JWD	Tray	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	100VDC - Max	10 mA	Non Latching	Diode	PC Pin	-	3.8 VDC	0.5 VDC	1.5 ms	0.5 ms	-35°C ~ 85°C	Ruthenium (Ru)
7101-12-1100 RELAY REED SPST 500MA 12V Coto Technology	4,081	-	立即询价	数据手册	7000	Bulk	Active	Through Hole	12VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	7.5 mA	Non Latching	-	PC Pin	-	9 VDC	1 VDC	1 ms	0.1 ms	-20°C ~ 85°C	-
2204-12-311 RELAY REED SPST 500MA 12V Coto Technology	208	-	立即询价	数据手册	2200	Tube	Active	Through Hole	12VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	8 mA	Non Latching	-	PC Pin	Sealed - Hermetically	9 VDC	1 VDC	0.5 ms	0.1 ms	-20°C ~ 85°C	-
2200-2301 RELAY REED SPST 500MA 5V Coto Technology	1,580	-	立即询价	数据手册	2200	Tube	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	150VAC, 150VDC - Max	33.3 mA	Non Latching	-	PC Pin	Sealed - Hermetically	3.6 VDC	0.5 VDC	0.55 ms	0.1 ms	-20°C ~ 85°C	-
2332-05-010 RELAY REED DPST 500MA 5V Coto Technology	824	-	立即询价	数据手册	2300	Tube	Active	Through Hole	5VDC	DPST-NO (2 Form A)	500 mA	200VAC, 200VDC - Max	28.6 mA	Non Latching	-	PC Pin	Sealed - Hermetically	3.8 VDC	0.4 VDC	0.5 ms	0.15 ms	-20°C ~ 85°C	-
2271-12-001 RELAY REED SPDT 250MA 12V Coto Technology	117	-	立即询价	数据手册	2270	Tube	Active	Through Hole	12VDC	SPDT (1 Form C)	250 mA	100VAC, 100VDC - Max	21.8 mA	Non Latching	-	PC Pin	Sealed - Hermetically	6.7 VDC	1 VDC	1 ms	2 ms	-20°C ~ 125°C	-
2333-12-000 RELAY REED 3PST 500MA 12V Coto Technology	1,186	-	立即询价	数据手册	2300	Tray	Active	Through Hole	12VDC	3PST-NO (3 Form A)	500 mA	200VAC, 200VDC - Max	12 mA	Non Latching	-	PC Pin	Sealed - Hermetically	9 VDC	1 VDC	0.5 ms	0.15 ms	-20°C ~ 85°C	-
2911-05-311 RELAY REED SPDT 250MA 5V Coto Technology	618	-	立即询价	数据手册	2900	Tube	Active	Through Hole	5VDC	SPDT (1 Form C)	250 mA	150VAC, 150VDC - Max	21.7 mA	Non Latching	-	PC Pin	-	3.8 VDC	0.4 VDC	1 ms	2 ms	-20°C ~ 85°C	-
JWD-172-8 RELAY REED SPDT 500MA 24V TE Connectivity Potter & Brumfield Relays	3,928	-	立即询价	数据手册	JWD	Tray	Active	Through Hole	24VDC	SPDT (1 Form C)	500 mA	28VDC - Max	10.9 mA	Non Latching	Diode	PC Pin	-	19.2 VDC	2 VDC	1.5 ms	3 ms	-35°C ~ 85°C	Ruthenium (Ru)
4031-12-3001 RELAY COTO STANDARD CD REV.00 BO Coto Technology	646	-	立即询价	数据手册	-	Tube	Active	Through Hole	12VDC	SPST-NO (1 Form A)	500 mA	500VAC, 500VDC - Max	6.7 mA	Non Latching	-	PC Pin	-	9 VDC	1 VDC	1 ms	0.5 ms	-20°C ~ 80°C	-
3502-12-710 RELAY REED DPST 500MA 12V Coto Technology	270	-	立即询价	数据手册	3500	Tube	Active	Through Hole	12VDC	DPST-NO (2 Form A)	500 mA	200VAC, 200VDC - Max	6 mA	Non Latching	-	PC Pin	Sealed - Hermetically	9 VDC	1 VDC	0.75 ms	0.1 ms	-20°C ~ 85°C	-
V23100V4305C011 RELAY REED SPDT 250MA 5V TE Connectivity Potter & Brumfield Relays	181	-	立即询价	数据手册	V23100-V4, AXICOM	Tube	Active	Through Hole	5VDC	SPDT (1 Form C)	250 mA	175VDC - Max	25 mA	Non Latching	Diode, Electrostatic Shield	PC Pin	-	3.5 VDC	0.75 VDC	1.1 ms	1.6 ms	-40°C ~ 85°C	Ruthenium (Ru)
2971-12-00 RELAY REED SPDT 250MA 12V Coto Technology	547	-	立即询价	数据手册	2970	Tube	Active	Through Hole	12VDC	SPDT (1 Form C)	250 mA	150VAC, 150VDC - Max	8 mA	Non Latching	-	PC Pin	-	6.7 VDC	1 VDC	1 ms	2 ms	-40°C ~ 125°C	-

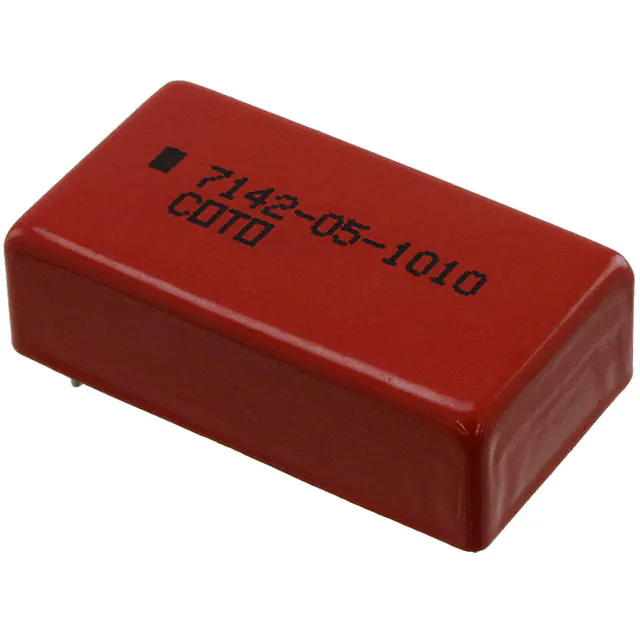

7142-05-1010 RELAY REED DPDT 250MA 5V Coto Technology	188	-	立即询价	数据手册	7000	Bulk	Active	Through Hole	5VDC	DPDT (2 Form C)	250 mA	150VAC, 150VDC - Max	77 mA	Non Latching	Electrostatic Shield	PC Pin	-	3.75 VDC	0.4 VDC	2 ms	2.5 ms	-20°C ~ 85°C	-
3541-05-811 RELAY REED DPST 500MA 5V Coto Technology	407	-	立即询价	数据手册	3500	Tube	Active	Through Hole	5VDC	DPST-NO (2 Form A)	500 mA	500VAC, 500VDC - Max	25 mA	Non Latching	-	PC Pin	Sealed - Hermetically	3.8 VDC	0.4 VDC	1 ms	0.2 ms	-20°C ~ 85°C	-
SAR91203 RELAY REED SPST 500MA 12V Sensata Technologies, Inc.	247	-	立即询价	数据手册	S	Tray	Active	Through Hole	12VDC	SPST-NO (1 Form A)	500 mA	20VAC, 20VDC - Max	20 mA	Non Latching	-	PC Pin	-	9 VDC	1.25 VDC	1 ms	0.5 ms	-20°C ~ 70°C	Rhodium (Rh)
3351-1275-056 RELAY REED HV SPST 50W 3A 5V Computer Components Inc	224	-	立即询价	数据手册	3350	Bulk	Active	Through Hole	5VDC	SPST-NO (1 Form A)	3 A	7500VAC, 7500VDC - Max	125 mA	Non Latching	-	PC Pin	-	3.75 VDC	0.5 VDC	3 ms	3 ms	-20°C ~ 85°C	-
3351-4275-056 RELAY REED HV SPST-NC 50W 3A 5V Computer Components Inc	40	-	立即询价	数据手册	3350	Bulk	Active	Through Hole	5VDC	SPST-NC (1 Form B)	3 A	7500VAC, 7500VDC - Max	125 mA	Non Latching	-	PC Pin	-	3.75 VDC	0.5 VDC	3 ms	3 ms	-20°C ~ 85°C	-
