IGBT 模块

制造商	系列	封装/外壳	包装	产品状态	IGBT 类型	配置	电压 - 集电极发射极击穿（最大值）	电流 - 集电极 (Ic)（最大值）	功率 - 最大值	导通电压 (Vce(on)）（最大值）@ Vge, Ic	电流 - 集电极截止（最大值）	输入电容 (Cies) @ Vce	输入	NTC 热敏电阻	工作温度	安装类型	供应商设备封装
Alpha & Omega Semiconductor Inc. Analog Devices Inc. Fairchild Semiconductor GeneSiC Semiconductor Infineon Technologies IXYS KYOCERA AVX Littelfuse Inc. Micro Commercial Co Microchip Technology Microsemi Corporation Nexperia USA Inc. onsemi Powerex Inc. Quest Semi SanRex Corporation SemiQ SMC Diode Solutions STMicroelectronics Toshiba Semiconductor and Storage Vishay General Semiconductor - Diodes Division	* - Amp+™ ASPM16 BIMOSFET™ C C, TRENCHSTOP™ EasyBRIDGE EasyPACK™ EasyPACK™ 2B EasyPACK™, TRENCHSTOP™ EasyPACK™3 EasyPACK™3, TRENCHSTOP™ EasyPIM™ EasyPIM™ 1B EasyPIM™ 2B EasyPIM™, TRENCHSTOP™ EconoDUAL™ EconoDUAL™ 2 EconoDUAL™ 3 EconoDUAL™ 3, TRENCHSTOP™ EconoDUAL™, TRENCHSTOP™ EconoDUAL™3 EconoPACK™ EconoPACK™ 2 EconoPACK™ 3 EconoPACK™ 4 EconoPACK™+ EconoPACK™+ B EconoPACK™2 EconoPACK™3 EconoPACK™4 EconoPIM™ 2 EconoPIM™ 2, TRENCHSTOP™ EconoPIM™ 3 EconoPIM™2 EconoPIM™3 EconoPIM™3, TRENCHSTOP™ EiceDRIVER™ EliteSiC ™ FRED Pt® Gen5 XPT™ GenX3™ HB HEXFRED® HiPerFAST™ HybridPACK™ HybridPACK™ 2 HybridPACK™ DC6 HybridPACK™1 IGBTMOD™ IHM-A IHM-B IM240-M6, CIPOS™ IM241, CIPOS™ MIPAQ™ ModSTACK™ ModSTACK™ 3 ModSTACK™ HD MSC POWER MOS 7® POWER MOS 8™ Power-SPM™ PowerMESH™ PrimePACK™ PrimePack™2 PrimePACK™3 PrimePACK™3+ PrimePACK™3+ B PrimeSTACK™ SEMITOP® SmartPACK1 SmartPIM1 T Thunderbolt IGBT® TrenchStop™ VE-Trac ™ VE-Trac™ XHP™2 XHP™3 XPT™ XPT™, GenX3™ XPT™, GenX4™	- 10-MTP 12-MTP Module 13-PowerDIP Module (2.441", 62.00mm) 13-SSIP Exposed Pad, Formed Leads 15-PowerDIP Module (2.441", 62.00mm) 15-PowerDIP Module (2.827", 71.80mm) 16-MTP Module 19-SIP (13 Leads), IMS-2 20-MTP Module 23-PowerSMD Module, Gull Wing 25PM-AA 26-DIP Module 26-PowerDIP Module (1.199", 47.20mm) 27-PowerDIP Module (1.858", 47.20mm) 30-DIP Module 7PM-GA 7PM-HA 7PM-IA 9-PowerSMD D-3 Module D1 D4 DO-200AE Double INT-A-PAK (3 + 4) Double INT-A-PAK (3 + 8) Double INT-A-PAK (5) Dual INT-A-PAK (3 + 8) Dual INT-A-PAK (4 + 8) E+ E1 E10 E11 E2 E3 ECO-PAC2 ECONO2 EMIPAK-1B EMIPAK-2B EMIPAK2 EPM7 EZIRPACK 1™ Module F1 Module F2 Module INT-A-Pak INT-A-PAK (3 + 4) ISOPLUS247™ ISOTOP MiniPack2 Module POWIR ECO 2™ Module POWIR® 34 Module POWIR® 62 Module S-3 Module SEMITOP®2 SimBus F SOT-227-4 SOT-227-4, miniBLOC SP1 SP2 SP3 SP4 SP6 TO-200AF TO-204AA, TO-3 V1A-PAK Y3-DCB Y3-Li Y4-M5	- Bag Box Bulk Tape & Reel (TR) Tray Tube	Active Discontinued at Masstock Electronics Last Time Buy Not For New Designs Obsolete	- Field Stop NPT NPT and Fieldstop NPT, Trench Field Stop PT PT, Trench Trench Trench Field Stop	- 2 Independent 3 Independent 3 Phase Inverter Asymmetrical Bridge Boost Chopper Boost Chopper, Full Bridge Buck Chopper Dual Boost Chopper Dual Brake Chopper Dual Buck Chopper Dual, Common Source Dual, Parallel Full Bridge Full Bridge Inverter Half Bridge Half Bridge Inverter Single Single Chopper Single Switch T-Type Three Level Inverter Three Level Inverter - IGBT, FET Three Phase Three Phase Inverter Three Phase Inverter with Brake Triple, Dual - Common Source	- 1 kV 1000 V 1050 V 1118 V 1200 V 1250 V 1400 V 1600 V 1700 V 2000 V 2300 V 250 V 2500 V 300 V 3300 V 3600 V 4.3 kV 4300 V 4500 V 5900 V 6.5 kV 600 V 620 V 650 V 6500 V 700 V 705 V 750 V 900 V 950 V	- 1 A 1 kA 1.15 kA 1.2 kA 10 A 100 A 1000 A 101 A 103 A 105 A 1060 A 107 A 108 A 109 A 11 A 110 A 1100 A 111 A 112 A 113 A 1130 A 114 A 115 A 116 A 117 A 118 A 12 A 120 A 1200 A 121 A 123 A 124 A 125 A 1250 A 127 A 128 A 13 A 130 A 1300 A 134 A 135 A 138 A 139 A 1390 A 140 A 1400 A 142 A 145 A 146 A 147 A 148 A 149 A 15 A 150 A 1500 A 151 A 152 A 153 A 155 A 16 A 160 A 1600 A 164 A 165 A 166 A 167 A 169 A 17 A 170 A 1700 A 173 A 177 A 1790 A 18 A 180 A 1800 A 181 A 182 A 1825 A 183 A 185 A 186 A 187 A 19 A 1900 A 192 A 193 A 195 A 20 A 200 A 2000 A 201 A 205 A 209 A 210 A 215 A 218 A 22 A 220 A 221 A 225 A 226 A 23 A 230 A 2300 A 24 A 24.5 A 240 A 2400 A 2450 A 247 A 25 A 250 A 2500 A 255 A 2560 A 258 A 26 A 260 A 2600 A 27 A 27.5 A 270 A 2700 A 2735 A 275 A 28 A 280 A 281 A 283 A 285 A 2850 A 288 A 29 A 290 A 295 A 30 A 300 A 3000 A 303 A 305 A 306 A 309 A 31 A 310 A 312 A 32 A 320 A 3200 A 325 A 330 A 335 A 337 A 34 A 340 A 341 A 3460 A 35 A 350 A 3550 A 3560 A 359 A 360 A 3600 A 37 A 37.5 A 370 A 372 A 375 A 379 A 38 A 380 A 39 A 390 A 40 A 400 A 409 A 41 A 410 A 42 A 420 A 4280 A 429 A 43 A 430 A 440 A 45 A 450 A 460 A 465 A 466 A 4700 A 476 A 48 A 480 A 4800 A 483 A 49 A 492 A 4930 A 5.7 A 50 A 500 A 51 A 510 A 52 A 520 A 530 A 54 A 55 A 550 A 560 A 57 A 570 A 58 A 580 A 59 A 6 A 60 A 600 A 605 A 61 A 610 A 62 A 620 A 625 A 630 A 64 A 640 A 65 A 650 A 66 A 660 A 67 A 670 A 675 A 68 A 680 A 69 A 7 A 7.2 A 70 A 700 A 711 A 72 A 720 A 7200 A 73 A 74 A 740 A 75 A 750 A 758 A 760 A 78 A 780 A 79 A 790 A 8.8 A 80 A 800 A 81 A 82 A 820 A 825 A 83 A 84 A 840 A 85 A 850 A 86 A 860 A 87 A 88 A 89 A 890 A 90 A 900 A 910 A 92 A 93 A 930 A 94 A 95 A 950 A 96 A 97 A 995 A	- 1 kW 1.08 kW 1.2 kW 1.54 kW 1.85 kW 100 W 1000 W 10000 W 1000000 W 1008 W 103 W 104 W 1040 W 1041 W 1042 W 105 W 1050 W 10500 W 1053 W 1060 W 1070 W 1087 W 110 W 1100 W 11000 W 113 W 1130 W 1136 W 114 W 1140 W 115 W 1150 W 11500 W 1160 W 118 W 119 W 12.5 W 1200 W 1200000 W 122 W 125 W 1250 W 12500 W 13 W 130 W 1300 W 13000 W 1316 W 1320 W 1325 W 1340 W 135 W 1350 W 13500 W 1363 W 1364 W 138 W 1380 W 139 W 1390 W 140 W 1400 W 1400000 W 142 W 142.8 W 1420 W 144 W 1440 W 145 W 1450 W 14500 W 146 W 147 W 1470 W 15 W 150 W 1500 W 15000 W 1540 W 1546 W 155 W 1550 W 15500 W 156 W 1560 W 1562 W 1563 W 158 W 1595 W 160 W 1600 W 1600000 W 1620 W 163 W 1630 W 1645 W 165 W 1650 W 166 W 1660 W 170 W 1700 W 17000 W 1710 W 175 W 1750 W 176 W 1780 W 1785 W 180 W 1800 W 1800000 W 181 W 1850 W 186 W 187 W 188 W 1890 W 190 W 1900 W 19000 W 192 W 1920 W 1925 W 193 W 194 W 195 W 1950 W 197 W 1980 W 2.4 MW 20 mW 200 W 2000 W 2000000 W 202 W 205 W 208 W 2080 W 2082 W 210 W 2100 W 21000 W 2119 W 2140 W 215 W 2150 W 216 W 2160 W 220 W 2200 W 225 W 2250 W 227 W 2270 W 23 W 230 W 2300 W 2307 W 231 W 234 W 235 W 2350 W 236 W 240 W 2400 W 2400000 W 245 W 2450 W 250 W 2500 W 2520 W 255 W 2550 W 259 W 260 W 2604 W 266 W 270 W 2700 W 2710 W 275 W 2750 W 276 W 277 W 2770 W 2775 W 280 W 2800 W 283 W 284 W 2840 W 285 W 288 W 290 W 2900 W 291 W 29140 W 294 W 298 W 3 MW 3.26 kW 300 W 3000 W 3000000 W 305 W 3060 W 310 W 3100 W 312 W 3120 W 3125 W 3150 W 320 W 32300 W 329 W 330 W 3330 W 335 W 3350 W 338 W 340 W 3400 W 345 W 347 W 348 W 350 W 355 W 3550 W 356 W 357 W 36 W 360 W 3600 W 3600000 W 365 W 3670 W 368 W 370 W 3700 W 375 W 3750 W 378 W 3780 W 3785 W 379 W 38 W 380000 W 385 W 390 W 3900 W 395 W 396 W 40 W 40.5 W 400 W 4000 W 4000000 W 403 W 405 W 4050 W 410 W 4100 W 4150 W 416 W 417 W 420 W 4200 W 422 W 429 W 430 W 4300 W 431 W 445 W 4450 W 446 W 447 W 45 W 450 W 452 W 454 W 454.5 W 4545 W 460 W 462 W 463 W 465 W 470 W 476 W 480 W 4800 W 483 W 4900 W 4900000 W 497 W 50 W 500 W 5000 W 503 W 5100 W 511 W 515 W 517 W 520 W 5200 W 521 W 530 W 5355 W 536 W 540 W 5400000 W 543 W 555 W 56 W 560 W 5600 W 565 W 568 W 570 W 5700 W 575 W 577 W 5800 W 590 W 5900 W 592 W 595 W 5950 W 595000 W 60 W 600 W 62 W 620 W 625 W 6250 W 63 W 630 W 64 W 640 W 65 W 650 W 6500 W 652 W 654 W 657 W 658 W 66 W 660 W 6600 W 672 W 675 mW 675 W 679 W 68 W 680 W 682 W 69 W 690 W 694 W 695 W 700 W 71.5 W 714 W 7150 W 73 W 730 W 733 W 735 W 75 W 750 W 7500 W 76 W 760 W 7600 W 7650 W 765000 W 77 W 7700 W 780 W 7800 W 781 W 785 W 789 W 790 W 8.9 W 80 W 800 W 81 W 82 W 83.5 W 830 W 833 W 835 W 8350 W 85 W 86 W 862 W 870 W 88 W 882 W 89 W 890 W 8900 W 892 W 893 W 8950 W 9 W 9.62 kW 90 W 9000 W 93 W 931 W 935 W 938 W 94 W 940 W 9400 W 95 W 9550 W 955000 W 959 W 96 W 960 W 9600 W 961 W 968 W 980 W 9800 W 9980 W	- 1.13V @ 15V, 100A 1.15V @ 15V, 100A 1.16V @ 15V, 100A 1.18V @ 15V, 200A 1.21V @ 15V, 200A 1.21V @ 15V, 600A 1.25V @ 15V, 100A 1.25V @ 15V, 550A 1.28V @ 15V, 100A 1.32V @ 15V, 100A 1.32V @ 15V, 150A 1.32V @ 15V, 200A 1.34V @ 15V, 100A 1.35V @ 15V, 100A 1.35V @ 15V, 375A 1.35V @ 15V, 400A 1.35V @ 15V, 450A 1.35V @ 15V, 60A 1.38V @ 15V, 100A 1.38V @ 15V, 50A 1.3V @ 15V, 100A 1.3V @ 15V, 30A 1.44V @ 15V, 450A 1.45V @ 15V, 100A 1.45V @ 15V, 150A (Typ) 1.45V @ 15V, 200A (Typ) 1.45V @ 15V, 300A 1.45V @ 15V, 300A (Typ) 1.45V @ 15V, 30A 1.45V @ 15V, 400A 1.45V @ 15V, 400A (Typ) 1.45V @ 15V, 600A (Typ) 1.47V @ 15V, 300A 1.48V @ 15V, 45A 1.4V @ 15V, 100A 1.4V @ 15V, 150A 1.4V @ 15V, 400A 1.50V @ 15V, 100A 1.52V @ 15V, 400A 1.53V @ 15V, 30A 1.55V @ 15V, 150A 1.55V @ 15V, 200A 1.55V @ 15V, 25A 1.55V @ 15V, 37.5A 1.55V @ 15V, 600A 1.55V @ 15V, 75A 1.55V @ 15V, 75A (Typ) 1.58V @ 15V, 1A 1.58V @ 15V, 300A 1.58V @ 15V, 500A 1.58V @ 15V, 800A 1.5V @ 15V, 100A 1.5V @ 15V, 15A 1.5V @ 15V, 50A 1.5V @ 15V, 50A (Typ) 1.5V @ 15V, 600A 1.62V @ 15V, 2A 1.63V @ 15V, 16A 1.64V @ 15V, 450A 1.64V @ 15V, 50A 1.66V @ 15V, 200A 1.66V @ 15V, 8.8A 1.67V @ 15V, 150A 1.6V @ 15V, 100A 1.6V @ 15V, 10A 1.6V @ 15V, 10A (Typ) 1.6V @ 15V, 25A 1.6V @ 15V, 25A (Typ) 1.6V @ 15V, 27A 1.6V @ 15V, 300A 1.6V @ 15V, 30A 1.6V @ 15V, 35A 1.6V @ 15V, 37.5A 1.6V @ 15V, 400A 1.6V @ 15V, 550A 1.6V @ 15V, 600A 1.72V @ 15V, 20A 1.75V @ 15V, 100A 1.75V @ 15V, 280A 1.75V @ 15V, 300A 1.75V @ 15V, 450A 1.75V @ 15V, 50A 1.75V @ 15V, 600A 1.75V @ 15V, 750A 1.75V @ 15V, 75A 1.75V @ 15V, 800A 1.75V @ 15V, 85A 1.77V @ 15V, 100A (Typ) 1.78V @ 15V, 500mA 1.7V @ 10V, 200A 1.7V @ 10V, 450A 1.7V @ 10V, 600A 1.7V @ 15V, 100A 1.7V @ 15V, 100A (Typ) 1.7V @ 15V, 140A 1.7V @ 15V, 150A (Typ) 1.7V @ 15V, 200A 1.7V @ 15V, 200A (Typ) 1.7V @ 15V, 20A 1.7V @ 15V, 225A (Typ) 1.7V @ 15V, 25A 1.7V @ 15V, 300A 1.7V @ 15V, 300A (Typ) 1.7V @ 15V, 30A 1.7V @ 15V, 4.8A 1.7V @ 15V, 400A 1.7V @ 15V, 400A (Typ) 1.7V @ 15V, 450A (Typ) 1.7V @ 15V, 50A (Typ) 1.7V @ 15V, 60A 1.7V @ 15V, 75A 1.81V @ 15V, 20A 1.82V @ 15V, 35A 1.84V @ 15V, 20A 1.85V @ 15V, 100A 1.85V @ 15V, 150A 1.85V @ 15V, 200A 1.85V @ 15V, 225A 1.85V @ 15V, 25A 1.85V @ 15V, 300A 1.85V @ 15V, 70A 1.85V @ 15V, 750A 1.85V @ 15V, 75A 1.85V @ 15V, 800A 1.85V @ 15V, 900A 1.8V @ 15V, 100A 1.8V @ 15V, 100A (Typ) 1.8V @ 15V, 150A 1.8V @ 15V, 150A (Typ) 1.8V @ 15V, 200A 1.8V @ 15V, 200A (Typ) 1.8V @ 15V, 24A 1.8V @ 15V, 300A 1.8V @ 15V, 375A 1.8V @ 15V, 400A 1.8V @ 15V, 450A 1.8V @ 15V, 50A 1.8V @ 15V, 50A (Typ) 1.8V @ 15V, 600A 1.8V @ 15V, 70A 1.8V @ 15V, 75A 1.8V @ 15V, 75A (Typ) 1.8V @ 15V, 900A 1.93V @ 15V, 3A 1.93V @ 15V, 75A 1.95V @ 15V, 100A 1.95V @ 15V, 150A 1.95V @ 15V, 200A 1.95V @ 15V, 250A 1.95V @ 15V, 25A 1.95V @ 15V, 300A 1.95V @ 15V, 35A 1.95V @ 15V, 400A 1.95V @ 15V, 450A 1.95V @ 15V, 50A 1.95V @ 15V, 600A 1.95V @ 15V, 7.2A 1.95V @ 15V, 75A 1.98V @ 15V, 150A 1.9V @ 15V, 100A 1.9V @ 15V, 100A (Typ) 1.9V @ 15V, 150A 1.9V @ 15V, 15A 1.9V @ 15V, 200A 1.9V @ 15V, 200A (Typ) 1.9V @ 15V, 20A 1.9V @ 15V, 300A 1.9V @ 15V, 300A (Typ) 1.9V @ 15V, 30A 1.9V @ 15V, 35A 1.9V @ 15V, 400A 1.9V @ 15V, 400A (Typ) 1.9V @ 15V, 450A 1.9V @ 15V, 50A 1.9V @ 15V, 600A 1.9V @ 15V, 600A (Typ) 1.9V @ 15V, 75A 1.9V @ 15V, 800A 17.5V @ 15V, 225A 2.05V @ 15V, 1.4kA 2.05V @ 15V, 1.6kA 2.05V @ 15V, 1.8kA 2.05V @ 15V, 100A 2.05V @ 15V, 1200A 2.05V @ 15V, 1400A 2.05V @ 15V, 1800A 2.05V @ 15V, 2.4kA 2.05V @ 15V, 200A 2.05V @ 15V, 2400A 2.05V @ 15V, 3.6kA 2.05V @ 15V, 3600A 2.05V @ 15V, 400A 2.05V @ 15V, 40A 2.05V @ 15V, 450A 2.05V @ 15V, 600A 2.05V @ 15V, 800A 2.05V @ 15V, 900A 2.06V @ 15V, 100A 2.12V @ 15V, 200A 2.15V @ 15V, 1.2kA 2.15V @ 15V, 1.5kA 2.15V @ 15V, 100A 2.15V @ 15V, 1200A 2.15V @ 15V, 1500A 2.15V @ 15V, 150A 2.15V @ 15V, 15A 2.15V @ 15V, 1800A 2.15V @ 15V, 2.4kA 2.15V @ 15V, 200A 2.15V @ 15V, 225A 2.15V @ 15V, 25A 2.15V @ 15V, 3.6kA 2.15V @ 15V, 300A 2.15V @ 15V, 35A 2.15V @ 15V, 400A 2.15V @ 15V, 40A 2.15V @ 15V, 450A 2.15V @ 15V, 50A 2.15V @ 15V, 600A 2.15V @ 15V, 75A 2.15V @ 15V, 800A 2.15V @15V, 225A 2.16V @ 15V, 20A 2.17V @ 15V, 150A 2.17V @ 15V, 300A (Typ) 2.1V @ 15V, 1.2kA 2.1V @ 15V, 100A 2.1V @ 15V, 10A 2.1V @ 15V, 110A 2.1V @ 15V, 1200A 2.1V @ 15V, 120A 2.1V @ 15V, 1400A 2.1V @ 15V, 150A 2.1V @ 15V, 15A 2.1V @ 15V, 16A 2.1V @ 15V, 1800A 2.1V @ 15V, 2.4kA 2.1V @ 15V, 200A 2.1V @ 15V, 225A 2.1V @ 15V, 2400A 2.1V @ 15V, 25A 2.1V @ 15V, 300A 2.1V @ 15V, 30A 2.1V @ 15V, 35A 2.1V @ 15V, 400A 2.1V @ 15V, 450A 2.1V @ 15V, 50A 2.1V @ 15V, 55A 2.1V @ 15V, 600A 2.1V @ 15V, 6A 2.1V @ 15V, 75A 2.1V @ 15V, 80A 2.1V @ 15V, 900A 2.1V @ 15V, 9A 2.22V @ 15V, 50A 2.22V @ 15V, 75A 2.25V @ 15V, 1.2kA 2.25V @ 15V, 1.6kA 2.25V @ 15V, 1.8kA 2.25V @ 15V, 100A 2.25V @ 15V, 10A 2.25V @ 15V, 1200A 2.25V @ 15V, 1300A 2.25V @ 15V, 150A 2.25V @ 15V, 15A 2.25V @ 15V, 1600A 2.25V @ 15V, 1800A 2.25V @ 15V, 2.4kA 2.25V @ 15V, 200A 2.25V @ 15V, 2400A 2.25V @ 15V, 25A 2.25V @ 15V, 3.6kA 2.25V @ 15V, 300A 2.25V @ 15V, 35A 2.25V @ 15V, 3600A 2.25V @ 15V, 400A 2.25V @ 15V, 450A 2.25V @ 15V, 50A 2.25V @ 15V, 600A 2.25V @ 15V, 6A 2.25V @ 15V, 75A 2.25V @ 15V, 800A 2.26V @ 15V, 1.8kA 2.26V @ 15V, 70A 2.29V @ 15V, 60A 2.2V @ 15V, 1.4kA 2.2V @ 15V, 1.5kA 2.2V @ 15V, 100A 2.2V @ 15V, 1400A 2.2V @ 15V, 1500A 2.2V @ 15V, 150A 2.2V @ 15V, 15A 2.2V @ 15V, 1800A 2.2V @ 15V, 200A 2.2V @ 15V, 225A 2.2V @ 15V, 2kA (Typ) 2.2V @ 15V, 3.9A 2.2V @ 15V, 300A 2.2V @ 15V, 30A 2.2V @ 15V, 35A 2.2V @ 15V, 400A 2.2V @ 15V, 40A 2.2V @ 15V, 450A 2.2V @ 15V, 50A 2.2V @ 15V, 600A 2.2V @ 15V, 75A 2.2V @ 15V, 77A 2.35V @ 15V, 100A 2.35V @ 15V, 10A 2.35V @ 15V, 110A 2.35V @ 15V, 1200A 2.35V @ 15V, 150A 2.35V @ 15V, 200A 2.35V @ 15V, 225A 2.35V @ 15V, 450A 2.35V @ 15V, 50A 2.35V @ 15V, 75A 2.3V @ 15V, 1000A 2.3V @ 15V, 100A 2.3V @ 15V, 10A 2.3V @ 15V, 1200A 2.3V @ 15V, 1400A (Typ) 2.3V @ 15V, 150A 2.3V @ 15V, 15A 2.3V @ 15V, 1800A 2.3V @ 15V, 2.4kA 2.3V @ 15V, 200A 2.3V @ 15V, 20A 2.3V @ 15V, 225A 2.3V @ 15V, 2400A 2.3V @ 15V, 240A 2.3V @ 15V, 250A 2.3V @ 15V, 25A 2.3V @ 15V, 300A 2.3V @ 15V, 30A 2.3V @ 15V, 35A 2.3V @ 15V, 3600A 2.3V @ 15V, 375A 2.3V @ 15V, 400A 2.3V @ 15V, 401A 2.3V @ 15V, 40A 2.3V @ 15V, 450A 2.3V @ 15V, 500A 2.3V @ 15V, 50A 2.3V @ 15V, 600A 2.3V @ 15V, 70A 2.3V @ 15V, 75A 2.42V @ 15V, 100A 2.42V @ 15V, 25A 2.42V @ 15V, 300A 2.44V @ 15V, 70A 2.45V @ 15V, 1.2kA 2.45V @ 15V, 1.6kA 2.45V @ 15V, 1.8kA 2.45V @ 15V, 1000A 2.45V @ 15V, 100A 2.45V @ 15V, 10A 2.45V @ 15V, 1200A 2.45V @ 15V, 150A 2.45V @ 15V, 15A 2.45V @ 15V, 200A 2.45V @ 15V, 20A 2.45V @ 15V, 225A 2.45V @ 15V, 25A 2.45V @ 15V, 300A 2.45V @ 15V, 30A 2.45V @ 15V, 35A 2.45V @ 15V, 360A 2.45V @ 15V, 400A 2.45V @ 15V, 450A 2.45V @ 15V, 500A 2.45V @ 15V, 50A 2.45V @ 15V, 600A 2.45V @ 15V, 650A 2.45V @ 15V, 75A 2.45V @ 15V, 800A 2.45V @ 15V, 80A 2.45V @ 3.6kA, 15V 2.48V @ 15V, 80A 2.49V @ 15V, 60A 2.4V @ 15V, 100A 2.4V @ 15V, 110A 2.4V @ 15V, 150A 2.4V @ 15V, 15A 2.4V @ 15V, 160A 2.4V @ 15V, 200A 2.4V @ 15V, 20A 2.4V @ 15V, 225A 2.4V @ 15V, 25A 2.4V @ 15V, 300A 2.4V @ 15V, 30A 2.4V @ 15V, 35A 2.4V @ 15V, 400A 2.4V @ 15V, 40A 2.4V @ 15V, 450A 2.4V @ 15V, 50A 2.4V @ 15V, 600A 2.4V @ 15V, 75A 2.4V @ 15V, 800A 2.4V @ 15V, 80A 2.52V @ 15V, 30A 2.55V @ 15V, 100A 2.55V @ 15V, 150A 2.55V @ 15V, 15A 2.55V @ 15V, 200A 2.55V @ 15V, 20A 2.55V @ 15V, 225A 2.55V @ 15V, 25A 2.55V @ 15V, 30A 2.55V @ 15V, 50A 2.55V @ 15V, 600A 2.55V @ 15V, 80A 2.55V @ 25V, 1.2kA 2.5V @ 15V, 100A 2.5V @ 15V, 10A 2.5V @ 15V, 1200A 2.5V @ 15V, 1400A 2.5V @ 15V, 150A 2.5V @ 15V, 15A 2.5V @ 15V, 160A 2.5V @ 15V, 180A 2.5V @ 15V, 2000A 2.5V @ 15V, 200A 2.5V @ 15V, 20A 2.5V @ 15V, 25A 2.5V @ 15V, 3000A 2.5V @ 15V, 300A 2.5V @ 15V, 30A 2.5V @ 15V, 360A 2.5V @ 15V, 400A 2.5V @ 15V, 40A 2.5V @ 15V, 47A 2.5V @ 15V, 4A 2.5V @ 15V, 50A 2.5V @ 15V, 600A 2.5V @ 15V, 60A 2.5V @ 15V, 62A 2.5V @ 15V, 6A 2.5V @ 15V, 75A 2.5V @ 15V, 7A 2.5V @ 15V, 80A 2.5V @ 15V, 85A 2.5V @ 15V, 900A 2.5V @ 15V, 90A 2.65V @ 15V, 1.6kA 2.65V @ 15V, 2.4kA 2.65V @ 15V, 25A 2.65V @ 15V, 40A 2.65V @ 15V, 600A 2.65V @ 15V, 825A 2.6V @ 15V, 1.2kA 2.6V @ 15V, 1.6kA 2.6V @ 15V, 1.8kA 2.6V @ 15V, 100A 2.6V @ 15V, 150A 2.6V @ 15V, 15A 2.6V @ 15V, 1800A 2.6V @ 15V, 200A 2.6V @ 15V, 2400A 2.6V @ 15V, 300A 2.6V @ 15V, 35A 2.6V @ 15V, 400A 2.6V @ 15V, 40A 2.6V @ 15V, 450A 2.6V @ 15V, 4A 2.6V @ 15V, 50A 2.6V @ 15V, 600A 2.6V @ 15V, 75A 2.6V @ 15V, 800A 2.6V @ 25V, 1800A 2.75V @ 15V, 1.2kA 2.75V @ 15V, 17.5A 2.75V @ 15V, 25A 2.75V @ 15V, 450A 2.75V @ 15V, 70A 2.7V @ 15V, 100A 2.7V @ 15V, 10A 2.7V @ 15V, 1500A 2.7V @ 15V, 150A 2.7V @ 15V, 15A 2.7V @ 15V, 160A 2.7V @ 15V, 200A 2.7V @ 15V, 20A 2.7V @ 15V, 25A 2.7V @ 15V, 300A 2.7V @ 15V, 30A 2.7V @ 15V, 35A 2.7V @ 15V, 400A 2.7V @ 15V, 40A 2.7V @ 15V, 50A 2.7V @ 15V, 600A 2.7V @ 15V, 60A 2.7V @ 15V, 65A 2.7V @ 15V, 75A 2.7V @ 15V, 80A 2.85V @ 15V, 1.5kA 2.85V @ 15V, 1000A 2.85V @ 15V, 100A 2.85V @ 15V, 10A 2.85V @ 15V, 1200A 2.85V @ 15V, 1500A 2.85V @ 15V, 1kA 2.85V @ 15V, 35A 2.85V @ 15V, 800A 2.85V @ 15V, 80A 2.8V @ 15V, 1.2kA 2.8V @ 15V, 1.8kA 2.8V @ 15V, 1000A 2.8V @ 15V, 100A 2.8V @ 15V, 1200A 2.8V @ 15V, 150A 2.8V @ 15V, 15A 2.8V @ 15V, 200A 2.8V @ 15V, 20A 2.8V @ 15V, 300A 2.8V @ 15V, 30A 2.8V @ 15V, 35A 2.8V @ 15V, 400A 2.8V @ 15V, 500A 2.8V @ 15V, 50A 2.8V @ 15V, 55A 2.8V @ 15V, 600A 2.8V @ 15V, 75A 2.8V @ 15V, 80A 2.9V @ 15V, 130A 2.9V @ 15V, 15A 2.9V @ 15V, 20A 2.9V @ 15V, 225A 2.9V @ 15V, 25A 2.9V @ 15V, 35A 2.9V @ 15V, 75A 2V @ 15V, 100A 2V @ 15V, 10A 2V @ 15V, 11A 2V @ 15V, 13A 2V @ 15V, 150A 2V @ 15V, 15A 2V @ 15V, 200A 2V @ 15V, 20A 2V @ 15V, 300A 2V @ 15V, 300A (Typ) 2V @ 15V, 30A 2V @ 15V, 35A 2V @ 15V, 400A 2V @ 15V, 50A 2V @ 15V, 6A 2V @ 15V, 75A 2V @ 15V, 80A 3.03V @ 15V, 15A 3.05V @ 15V, 1.5kA 3.05V @ 15V, 1kA 3.15V @ 15V, 1kA 3.15V @ 15V, 800A 3.1V @ 15V, 1.2kA 3.1V @ 15V, 1.5kA 3.1V @ 15V, 1.6kA 3.1V @ 15V, 1000A 3.1V @ 15V, 100A 3.1V @ 15V, 1200A 3.1V @ 15V, 1500A 3.1V @ 15V, 1600A 3.1V @ 15V, 1kA 3.1V @ 15V, 200A 3.1V @ 15V, 35A 3.1V @ 15V, 400A 3.1V @ 15V, 45A 3.1V @ 15V, 47A 3.1V @ 15V, 600A 3.1V @ 15V, 75A 3.1V @ 15V, 800A 3.25V @ 15V, 1kA 3.25V @ 15V, 50A 3.2V @ 15V, 1.2kA 3.2V @ 15V, 100A 3.2V @ 15V, 10A 3.2V @ 15V, 1200A 3.2V @ 15V, 120A 3.2V @ 15V, 150A 3.2V @ 15V, 200A 3.2V @ 15V, 300A 3.2V @ 15V, 35A 3.2V @ 15V, 400A 3.2V @ 15V, 50A 3.2V @ 15V, 600A 3.2V @ 15V, 70A 3.2V @ 15V, 75A 3.2V @ 15V, 800A 3.2V @ 15V, 82A 3.2V @ 15V, 85A 3.2V @ 20V, 50A 3.3V @ 15V, 10A 3.3V @ 15V, 25A 3.3V @ 15V, 300A 3.3V @ 15V, 400A 3.3V @ 15V, 50A 3.4V @ 15V, 100A 3.4V @ 15V, 125A 3.4V @ 15V, 140A 3.4V @ 15V, 150A 3.4V @ 15V, 15A 3.4V @ 15V, 200A 3.4V @ 15V, 20A 3.4V @ 15V, 225A 3.4V @ 15V, 250A 3.4V @ 15V, 300A 3.4V @ 15V, 30A 3.4V @ 15V, 400A 3.4V @ 15V, 500A 3.4V @ 15V, 50A 3.4V @ 15V, 600A 3.4V @ 15V, 60A 3.4V @ 15V, 750A 3.4V @ 15V, 75A 3.5V @ 15V, 100A 3.5V @ 15V, 200A 3.5V @ 15V, 25A 3.5V @ 15V, 400A 3.5V @ 15V, 50A 3.65V @ 15V, 1200A 3.65V @ 15V, 400A 3.65V @ 15V, 800A 3.66V @ 15V, 30A 3.6V @ 15V, 1000A 3.6V @ 15V, 100A 3.6V @ 15V, 200A 3.6V @ 15V, 30A 3.6V @ 15V, 800A 3.75V @ 15V, 100A 3.75V @ 15V, 150A 3.75V @ 15V, 300A 3.75V @ 15V, 50A 3.75V @ 15V, 600A 3.75V @ 15V, 75A 3.7V @ 15V, 100A 3.7V @ 15V, 150A 3.7V @ 15V, 15A 3.7V @ 15V, 200A 3.7V @ 15V, 225A 3.7V @ 15V, 25A 3.7V @ 15V, 300A 3.7V @ 15V, 400A 3.7V @ 15V, 50A 3.7V @ 15V, 600A 3.7V @ 15V, 75A 3.7V @ 15V, 800A 3.8V @ 15V, 30A 3.8V @ 15V, 50A 3.8V @ 15V, 75A 3.9V @ 15V, 100A 3.9V @ 15V, 150A 3.9V @ 15V, 300A 3.9V @ 15V, 35A 3.9V @ 15V, 40A 3.9V @ 15V, 45A 3.9V @ 15V, 50A 3.9V @ 15V, 67A 3.9V @ 15V, 75A 3.9V @ 15V, 82A 3V @ 15V, 100A 3V @ 15V, 150A 3V @ 15V, 15A 3V @ 15V, 200A 3V @ 15V, 25A 3V @ 15V, 300A 3V @ 15V, 400A 3V @ 15V, 40A 3V @ 15V, 50A 3V @ 15V, 600A 3V @ 15V, 75A 3V @ 15V, 800A 3V @ 15V, 80A 3V @ 15V, 90A 4.1V @ 15V, 400A 4.25V @ 15V, 1.2kA 4.25V @ 15V, 1200A 4.25V @ 15V, 200A 4.25V @ 15V, 400A 4.25V @ 15V, 800A 4.2V @ 15V, 100A 4.2V @ 15V, 150A 4.2V @ 15V, 200A 4.2V @ 15V, 300A 4.2V @ 15V, 400A 4.2V @ 15V, 40A 4.2V @ 15V, 50A 4.2V @ 15V, 600A 4.5V @ 15V, 1000A 4.5V @ 15V, 100A 4.5V @ 15V, 75A 4.66V @ 15V, 40A 4.6V @ 15V, 4A 4.7V @ 15V, 100A 4.91V @ 15V, 80A 4.9V @ 15V, 200A 4V @ 15V, 100A 4V @ 15V, 150A 4V @ 15V, 200A 4V @ 15V, 300A 4V @ 15V, 35A 4V @ 15V, 55A 6.5V @ 15V, 100A 6.5V @ 15V, 150A 6.5V @ 15V, 200A 6.5V @ 15V, 300A 6.5V @ 15V, 400A 6.5V @ 15V, 600A 6V @ 15V, 21A 6V @ 15V, 42A	- 1 mA 1.1 mA 1.2 mA 1.2 µA 1.25 mA 1.3 mA 1.4 mA 1.5 mA 1.75 mA 1.8 mA 10 mA 10 µA 100 mA 100 µA 12 mA 12 µA 12.2 µA 120 mA 120 µA 13 mA 13 µA 14 µA 15 µA 150 µA 16 mA 16 µA 18 µA 19 µA 2 mA 2.1 mA 2.7 mA 2.8 mA 20 A 20 µA 200 µA 21 mA 21 µA 230 µA 24 µA 25 µA 250 µA 26 µA 275 µA 3 mA 3 µA 3.3 mA 3.7 mA 3.8 mA 30 mA 300 nA 300 µA 31 µA 32 µA 330 µA 35 µA 350 µA 4 mA 4 µA 4.5 µA 40 A 40 µA 400 nA 400 µA 45 µA 5 mA 5 µA 5.6 mA 5.6 µA 5.8 µA 50 µA 500 mA 500 µA 51 µA 525 µA 53 µA 6 mA 6.2 µA 6.3 mA 60 µA 600 µA 65 µA 650 µA 7 µA 7.3 µA 7.5 mA 7.9 µA 70 µA 700 µA 71 µA 75 µA 750 µA 76 µA 79 µA 8 mA 8 µA 80 A 80 µA 800 µA 84 µA 9 µA 900 µA 92 µA	- 1 nF @ 25 V 1.07 nF @ 30 V 1.1 nF @ 25 V 1.1 nF @ 30 V 1.1 pF @ 25 V 1.14 nF @ 25 V 1.18 nF @ 25 V 1.277 nF @ 30 V 1.3 nF @ 25 V 1.35 nF @ 25 V 1.43 nF @ 25 V 1.45 nF @ 25 V 1.5 nF @ 10 V 1.5 nF @ 25 V 1.55 nF @ 25 V 1.56 nF @ 25 V 1.57 nF @ 10 V 1.6 nF @ 25 V 1.6 nF @ 30 V 1.65 nF @ 25 V 1.7 nF @ 25 V 1.8 nF @ 25 V 1.81 nF @ 25 V 1.85 nF @ 25 V 1.89 nF @ 25 V 1.9 nF @ 25 V 1.95 nF @ 25 V 1.95 nF @ 30 V 1.99 nF @ 20 V 10 nF @ 10 V 10 nF @ 25 V 10.2 nF @ 25 V 10.5 nF @ 25 V 10.6 nF @ 100 V 10.7 nF @ 25 V 10.77 nF @ 25 V 10.8 nF @ 25 V 10.84 nF @ 30 V 100 nF @ 10 V 100 nF @ 25 V 100 pF @ 25 V 10000 pF @ 25 V 10450 pF @ 25 V 105 nF @ 10 V 105 nF @ 25 V 11 nF @ 10 V 11 nF @ 25 V 11.1 nF @ 25 V 11.3 nF @ 10 V 11.5 nF @ 10 V 11.5 nF @ 25 V 11.7 pF @ 25 V 11.89 nF @ 20 V 11.897 nF @ 20 V 110 nF @ 10 V 110 nF @ 25 V 1100 pF @ 25 V 11000 pF @ 25 V 110000 pF @ 25 V 11100 pF @ 25 V 115 nF @ 25 V 115000 pF @ 25 V 11700 pF @ 25 V 12 nF @ 25 V 12.2 nF @ 25 V 12.3 nF @ 25 V 12.5 nF @ 25 V 12.6 nF @ 25 V 12.8 nF @ 30 V 12.84 nF @ 30 V 12.9 nF @ 25 V 120 nF @ 10 V 122 nF @ 25 V 122000 pF @ 25 V 125 nF @ 10 V 12500 pF @ 25 V 125000 pF @ 25 V 12687.7 pF @ 20 V 12800 pF @ 25 V 13 nF @ 25 V 13.1 nF @ 25 V 13.2 nF @ 10 V 13.256 nF @ 20 V 13.5 nF @ 25 V 13.6 nF @ 25 V 13.7 nF @ 25 V 13.8 nF @ 25 V 130 nF @ 25 V 13100 pF @ 25 V 132 nF @ 10 V 13256 pF @ 20 V 135 nF @ 25 V 13500 pF @ 25 V 14 nF @ 10 V 14 nF @ 25 V 14 nF @ 30 V 14.1 nF @ 25 V 14.3 nF @ 25 V 14.7 nF @ 30 V 14.8 nF @ 25 V 14.9 nF @ 25 V 140 nF @ 10 V 14000 pF @ 25 V 1430 pF @ 30 V 14300 pF @ 25 V 145 nF @ 25 V 1450 pF @ 25 V 14630 pF @ 20 V 15 nF @ 10 V 15 nF @ 25 V 15.1 nF @ 25 V 150 nF @ 25 V 15000 pF @ 25 V 15100 pF @ 25 V 15600 pF @ 25 V 16 nF @ 10 V 16 nF @ 25 V 16.25 nF @ 30 V 16.5 nF @ 30 V 16.9 nF @ 30 V 160 nF @ 10 V 160 nF @ 25 V 165 nF @ 10 V 166 nF @ 10 V 166 nF @ 25 V 1670 pF @ 25 V 17 nF @ 25 V 17.2 nF @ 25 V 17.5 nF @ 10 V 17.6 nF @ 10 V 17.6 nF @ 25 V 170 nF @ 10 V 170 nF @ 25 V 17000 pF @ 25 V 172 nF @ 10 V 18 nF @ 10 V 18 nF @ 25 V 18.15 nF @ 20 V 18.151 nF @ 20 V 18.3 nF @ 25 V 18.4 nF @ 25 V 18.5 nF @ 25 V 18.6 nF @ 25 V 18.67 nF @ 30 V 180 nF @ 10 V 18000 pF @ 25 V 18150 pF @ 20 V 18151 pF @ 20 V 18400 pF @ 25 V 18488 pF @ 20 V 185 nF @ 25 V 186 nF @ 25 V 187 nF @ 25 V 19 nF @ 25 V 19.082 nF @ 20 V 19.4 nF @ 20 V 190 nF @ 25 V 19000 pF @ 25 V 19082 pF @ 20 V 19380 pF @ 25 V 1940 pF @ 25 V 19400 pF @ 25 V 195 nF @ 25 V 2 nF @ 10 V 2 nF @ 25 V 2.02 nF @ 25 V 2.04 nF @ 25 V 2.1 nF @ 30 V 2.154 nF @ 25 V 2.2 nF @ 25 V 2.2 nF @ 30 V 2.25 nF @ 25 V 2.3 nF @ 25 V 2.35 nF @ 25 V 2.36 nF @ 10 V 2.5 nF @ 25 V 2.53 nF @ 25 V 2.6 nF @ 25 V 2.608 nF @ 20 V 2.77 nF @ 25 V 2.8 nF @ 25 V 2.82 nF @ 25 V 2.92 nF @ 30 V 2.95 nF @ 25 V 2.95 nF @ 650 V 20 nF @ 10 V 20 nF @ 25 V 20.5 nF @ 10 V 20.5 nF @ 25 V 200 nF @ 10 V 200 pF @ 25 V 2000 pF @ 25 V 205 nF @ 25 V 205 pF @ 25 V 205000 pF @ 25 V 21 nF @ 10 V 21 nF @ 25 V 21.2 nF @ 25 V 21.7 nF @ 25 V 210 nF @ 25 V 21000 pF @ 25 V 22 nF @ 10 V 22 nF @ 25 V 22.4 nF @ 25 V 22.5 nF @ 25 V 22.7 nF @ 25 V 22.9 nF @ 25 V 220 nF @ 10 V 220 pF @ 25 V 223000 pF @ 25 V 225 nF @ 25 V 2250 pF @ 25 V 23 nF @ 10 V 23.3 nF @ 30 V 230 nF @ 10 V 230 nF @ 25 V 235 nF @ 25 V 24 nF @ 10 V 24 nF @ 25 V 24.146 nF @ 20 V 24.2 nF @ 25 V 24.3 nF @ 25 V 24.5 nF @ 25 V 24.6 nF @ 25 V 24.7 nF @ 10 V 245000 pF @ 25 V 24600 pF @ 25 V 25 nF @ 25 V 25.2 nF @ 25 V 2500 pF @ 25 V 25000 pF @ 25 V 25200 pF @ 25 V 26 nF @ 25 V 26.06 nF @ 20 V 26.093 nF @ 20 V 26.4 nF @ 10 V 26.5 nF @ 25 V 260 nF @ 25 V 2600 pF @ 25 V 26060 pF @ 20 V 26400 pF @ 25 V 27 nF @ 10 V 27 nF @ 25 V 27.5 nF @ 25 V 27.9 nF @ 25 V 2770 pF @ 25 V 28 nF @ 25 V 28.8 nF @ 25 V 280 nF @ 25 V 28000 pF @ 25 V 29 nF @ 10 V 29 nF @ 25 V 295 nF @ 25 V 297 nF @ 25 V 3 nF @ 10 V 3 nF @ 25 V 3.03 nF @ 30 V 3.1 nF @ 25 V 3.137 nF @ 20 V 3.15 nF @ 25 V 3.2 nF @ 25 V 3.227 nF @ 20 V 3.227 nF @ 800 V 3.24 nF @ 10 V 3.24 nF @ 25 V 3.25 nF @ 25 V 3.3 nF @ 25 V 3.3 pF @ 25 V 3.34 nF @ 30 V 3.4 nF @ 25 V 3.45 nF @ 25 V 3.46 nF @ 30 V 3.475 nF @ 30 V 3.5 nF @ 10 V 3.5 nF @ 25 V 3.565 nF @ 30 V 3.59 nF @ 25 V 3.6 nF @ 25 V 3.65 nF @ 25 V 3.68 nF @ 800 V 3.69 nF @ 25 V 3.79 nF @ 30 V 3.8 nF @ 25 V 3.85 nF @ 25 V 3.9 nF @ 25 V 3.94 nF @ 25 V 30 nF @ 10 V 30 nF @ 25 V 30.1 nF @ 25 V 30.8 nF @ 25 V 30.8 nF @ 30 V 3000 pF @ 25 V 30000 pF @ 25 V 3020 pF @ 1 kV 31 nF @ 10 V 31 nF @ 25 V 3100 pF @ 25 V 32 nF @ 10 V 32 nF @ 25 V 32.5 nF @ 30 V 32.7 nF @ 25 V 33 nF @ 25 V 330 pF @ 25 V 34 nF @ 10 V 340 pF @ 25 V 340 pF @ 30 V 34000 pF @ 25 V 35 nF @ 10 V 35.2 nF @ 10 V 35.615 nF @ 25 V 36 nF @ 25 V 36 nF @ 30 V 36.6 nF @ 25 V 36000 pF @ 30 V 3650 pF @ 25 V 37 nF @ 25 V 37.1 nF @ 20 V 37.2 nF @ 25 V 37000 pF @ 25 V 37100 pF @ 20 V 37900 pF @ 25 V 38 nF @ 25 V 38.8 nF @ 25 V 38000 pF @ 25 V 38164 pF @ 25 V 39 nF @ 10 V 39 nF @ 25 V 4 nF @ 10 V 4 nF @ 25 V 4.06 nF @ 25 V 4.1 nF @ 25 V 4.15 nF @ 25 V 4.17 nF @ 25 V 4.2 nF @ 25 V 4.29 nF @ 25 V 4.3 nF @ 25 V 4.4 nF @ 25 V 4.44 nF @ 30 V 4.5 nF @ 25 V 4.515 nF @ 30 V 4.55 nF @ 25 V 4.6 nF @ 25 V 4.61 nF @ 25 V 4.62 nF @ 25 V 4.7 nF @ 25 V 4.74 nF @ 25 V 4.75 nF @ 25 V 4.77 nF @ 25 V 4.78 nF @ 25 V 4.8 nF @ 25 V 4.86 nF @ 25 V 4.877 nF @ 20 V 4.94 nF @ 10 V 4.98 nF @ 25 V 40 nF @ 10 V 40 nF @ 25 V 40.3 nF @ 25 V 40.5 nF @ 25 V 4030 pF @ 25 V 40300 pF @ 25 V 41 nF @ 10 V 41 nF @ 25 V 42 nF @ 10 V 42 nF @ 25 V 42.4 nF @ 25 V 420 nF @ 25 V 43000 pF @ 30 V 435 pF @ 25 V 4400 pF @ 25 V 44000 pF @ 25 V 45 nF @ 10 V 45 nF @ 25 V 45.5 nF @ 25 V 450 pF @ 30 V 4500 pF @ 25 V 46 nF @ 25 V 47 nF @ 10 V 47000 pF @ 30 V 48 nF @ 25 V 48000 pF @ 30 V 48597 pF @ 20 V 4877 pF @ 25 V 48843 pF @ 20 V 49 nF @ 25 V 49.2 nF @ 25 V 49.4 nF @ 10 V 49.7 nF @ 20 V 490 pF @ 25 V 49700 pF @ 20 V 5 nF @ 10 V 5 nF @ 25 V 5.1 nF @ 25 V 5.15 nF @ 25 V 5.3 nF @ 25 V 5.32 nF @ 25 V 5.34 nF @ 25 V 5.35 nF @ 25 V 5.42 nF @ 25 V 5.42 nF @ 30 V 5.5 nF @ 10 V 5.5 nF @ 25 V 5.52 nF @ 25 V 5.52 nF @ 800 V 5.55 nF @ 25 V 5.665 nF @ 30 V 5.7 nF @ 25 V 5.8 nF @ 30 V 50 nF @ 10 V 50 nF @ 25 V 51 nF @ 25 V 5170 pF @ 25 V 52 nF @ 25 V 52.8 nF @ 10 V 5200 pF @ 25 V 53 nF @ 50 V 530 pF @ 25 V 530 pF @ 30 V 5300 pF @ 25 V 54 nF @ 10 V 54 nF @ 25 V 54000 pF @ 25 V 5420 pF @ 25 V 5460 pF @ 25 V 55 nF @ 10 V 55 nF @ 25 V 550 pF @ 25 V 5520 pF @ 25 V 56 nF @ 25 V 56000 pF @ 25 V 57 nF @ 10 V 57 nF @ 25 V 58.5 nF @ 25 V 59 nF @ 10 V 6 nF @ 10 V 6 nF @ 25 V 6.085 nF @ 30 V 6.1 nF @ 25 V 6.15 nF @ 25 V 6.2 nF @ 20 V 6.2 nF @ 25 V 6.2 nF @ 650 V 6.24 nF @ 30 V 6.3 nF @ 25 V 6.32 nF @ 25 V 6.323 nF @ 20 V 6.48 nF @ 25 V 6.5 nF @ 25 V 6.523 nF @ 20 V 6.6 nF @ 10 V 6.6 nF @ 25 V 6.6 nF @ 30 V 6.62 nF @ 25 V 6.69 nF @ 10 V 6.7 nF @ 25 V 6.8 nF @ 25 V 6.9 nF @ 25 V 6.93 nF @ 25 V 60 nF @ 10 V 60 nF @ 25 V 60.5 nF @ 25 V 600 pF @ 25 V 6000 pF @ 25 V 60000 pF @ 30 V 60800 pF @ 50 V 61000 pF @ 30 V 620 nF @ 25 V 63 nF @ 10 V 630 nF @ 25 V 63000 pF @ 30 V 6350 pF @ 30 V 6450 pF @ 25 V 65 nF @ 25 V 65 nF @ 50 V 65.5 nF @ 25 V 65.6 nF @ 25 V 650 nF @ 25 V 6523 pF @ 20 V 66 nF @ 10 V 6600 pF @ 25 V 6700 pF @ 25 V 675 pF @ 25 V 68 nF @ 10 V 68 nF @ 25 V 6800 pF @ 25 V 69 nF @ 10 V 69 nF @ 25 V 7 nF @ 25 V 7 nF @ 800 V 7.04 nF @ 25 V 7.056 nF @ 30 V 7.08 nF @ 25 V 7.1 nF @ 25 V 7.1 nF @ 30 V 7.2 nF @ 25 V 7.21 nF @ 25 V 7.26 nF @ 25 V 7.36 nF @ 800 V 7.4 nF @ 25 V 7.4 nF @ 30 V 7.43 nF @ 25 V 7.43 nF @ 30 V 7.5 nF @ 10 V 7.71 nF @ 30 V 7.753 nF @ 20 V 7.85 nF @ 25 V 7.9 nF @ 25 V 70 nF @ 10 V 70.4 nF @ 10 V 700 pF @ 25 V 70800 pF @ 25 V 710 pF @ 30 V 72 nF @ 25 V 720 pF @ 25 V 74 nF @ 10 V 74 nF @ 25 V 740 pF @ 30 V 7430 pF @ 25 V 78 nF @ 10 V 78.1 nF @ 25 V 78100 pF @ 25 V 79 nF @ 25 V 8 nF @ 25 V 8 nF @ 30 V 8.01 nF @ 25 V 8.28 nF @ 30 V 8.3 nF @ 25 V 8.33 nF @ 20 V 8.333 nF @ 20 V 8.4 nF @ 25 V 8.45 nF @ 20 V 8.5 nF @ 10 V 8.5 nF @ 100 V 8.5 nF @ 25 V 8.502 nF @ 20 V 8.55 nF @ 25 V 8.58 nF @ 25 V 8.6 nF @ 25 V 8.65 nF @ 25 V 8.7 nF @ 25 V 8.8 nF @ 10 V 8.8 nF @ 25 V 8.96 nF @ 25 V 80 nF @ 10 V 80 nF @ 50 V 800 pF @ 25 V 8000 pF @ 25 V 81 nF @ 10 V 81 nF @ 25 V 81 pF @ 25 V 82 nF @ 25 V 82000 pF @ 25 V 83 nF @ 10 V 830 pF @ 25 V 84 nF @ 25 V 84000 pF @ 25 V 85 nF @ 10 V 8500 pF @ 25 V 86 nF @ 25 V 8640 pF @ 25 V 875 pF @ 25 V 88 nF @ 25 V 880 pF @ 25 V 890 pF @ 25 V 9 nF @ 10 V 9 nF @ 25 V 9.075 nF @ 20 V 9.2 nF @ 25 V 9.22 nF @ 25 V 9.3 nF @ 25 V 9.342 nF @ 20 V 9.35 nF @ 25 V 9.4 nF @ 650 V 9.5 nF @ 25 V 9.5 nF @ 30 V 9.546 nF @ 20 V 9.7 nF @ 25 V 9.84 nF @ 25 V 9.9 nF @ 25 V 9.97 nF @ 25 V 90 nF @ 10 V 90 nF @ 25 V 900 pF @ 25 V 92 nF @ 25 V 92.3 nF @ 25 V 92300 pF @ 25 V 93 nF @ 10 V 93.5 nF @ 25 V 93.8 nF @ 25 V 935 pF @ 30 V 9350 pF @ 25 V 93800 pF @ 25 V 94 nF @ 10 V 94300 pF @ 25 V 95 nF @ 10 V 95 pF @ 25 V 97 nF @ 25 V 97.5 nF @ 25 V 9700 pF @ 25 V 98 nF @ 25 V 98.5 nF @ 25 V 98.8 nF @ 10 V 980 pF @ 25 V 9800 pF @ 25 V 985 pF @ 25 V	- DC Single Phase Bridge Rectifier Standard Three Phase Bridge Rectifier	- No Yes	- -20°C ~ 150°C (TJ) -25°C ~ 55°C -25°C ~ 60°C -25°C ~ 85°C -40°C ~ 125°C -40°C ~ 125°C (TJ) -40°C ~ 150°C -40°C ~ 150°C (TJ) -40°C ~ 175°C -40°C ~ 175°C (TJ) -40°C ~ 65°C -40°C ~ 65°C (TA) -40°C ~ 75°C (TJ) -40°C ~ 85°C -50°C ~ 125°C -50°C ~ 125°C (TJ) -50°C ~ 135°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 175°C -55°C ~ 175°C (TJ) 125°C (TJ) 150°C (TJ) 175°C (TJ)	- Chassis Mount Chassis, Stud Mount Press Fit Surface Mount Through Hole	- 10-MTP 11-PIM (152x62.15) 12-MTP 12-MTP Pressfit 16-MTP 18-PIM/Q0PACK (55x32.5) 20-MTP 20-PIM/Q0PACK (55x32.5) 22-PIM (55x32.5) 22-PIM/Q0BOOST (55x32.5) 23-DIP 23-SOP 25PM-AA 26-DIP 27-DIP 27-PIM (71x37.4) 30-PIM (71x37.4) 32-PIM (56.7x42.5) 32-PIM (71x37.4) 36-PIM (56.7x48) 36-PIM/Q2PACK (93x47) 40-PIM/Q2PACK (107.2x47) 40-PIM/Q2PACK (93x47) 41-PIM/Q2PACK (93x47) 42-PIM/Q2PACK (93x47) 44-PIM (71x37.4) 44-PIM (93x47) 48-PIM/Q2PACK (93x47) 50-PIM (93x47) 51-PIM/Q2PACK (93x47) 53-PIM/Q2PACK (93x47) 56-PIM (93x47) 56-PIM/Q2PACK (93x47) 58-PIM (112x62) 60-PIM (112x62) 7PM-GA 7PM-HA 7PM-IA 9-ACEPACK SMIT A-IHV130 A-IHV130-3 A-IHV130-6 A-IHV190-6 ACEPACK™ 1 ACEPACK™ 2 AG-62MM AG-62MM-1 AG-62MMHB AG-EASY1B AG-EASY1B-1 AG-EASY1B-2 AG-EASY1BM-2 AG-EASY2B AG-EASY2B-1 AG-EASY2B-2 AG-EASY2B-3 AG-EASY2BM-2 AG-EASY3B AG-EASY4B AG-EASY750-1 AG-ECONO2 AG-ECONO2-6 AG-ECONO2-8 AG-ECONO2A AG-ECONO2B AG-ECONO2C AG-ECONO3 AG-ECONO3-3-1 AG-ECONO3B AG-ECONO4-1-1 AG-ECONOD AG-ECONOD-3 AG-ECONOD-4 AG-ECONOD-5 AG-ECONOD-6 AG-ECONOPP AG-ECONOPP-2-1 AG-HYBDC6I-1 AG-HYBRID1-1 AG-HYBRID2-1 AG-HYBRIDD-1 AG-HYBRIDD-2 AG-IHM130-2-1 AG-IHM190-2-1 AG-IHMB130-2 AG-IHMB130-2-1 AG-IHMB190 AG-IHMB190-2 AG-IHVB130-3 AG-IHVB190 AG-IHVB190-3 AG-PRIME2 AG-PRIME3 AG-PRIME3+ AG-PRIME3+-5 AG-PRIME3-1 AG-XHP100-3 AG-XHP100-6 AG-XHP3K33 AG-XHP3K65 AHPM13-CGA AHPM15-CEA AHPM15-CEC AHPM15-CFA ASPMCA-A16 BG-P16826K-1 C1 D1 D3 D4 Double INT-A-PAK Dual INT-A-PAK E+ E1 E10 E11 E1A E2 E2A E3 ECO-PAC2 ECONO2 4PACK ECONO3 4PACK EMIPAK-1B EMIPAK-2B EMIPAK2 EPM7 EZIRPACK 1™ F1 F2 IMS-2 INT-A-PAK INT-A-PAK IGBT ISOPLUS247™ ISOTOP ISOTOP® MiniPack2 Module MTP P2S P3S PG-MDIP-14-1 PG-MDIP-28 POWIR ECO 2™ POWIR® 34 POWIR® 62 PrimePACK™ 3+ Q0Pack180AA S3 SEMITOP®2 SimBus F SOT-227 SOT-227 (ISOTOP®) SOT-227B SOT-227B - miniBLOC SP1 SP2 SP3 SP3F SP4 SP6 SP6-P SSDC33 TO-204 V1A-PAK WB Y3-DCB Y3-Li Y4-M5

全部重置

全部应用

结果

制造商料号	库存情况	价格	数量	数据手册	系列	封装/外壳	包装	产品状态	IGBT 类型	配置	电压 - 集电极发射极击穿（最大值）	电流 - 集电极 (Ic)（最大值）	功率 - 最大值	导通电压 (Vce(on)）（最大值）@ Vge, Ic	电流 - 集电极截止（最大值）	输入电容 (Cies) @ Vce	输入	NTC 热敏电阻	工作温度	安装类型	供应商设备封装
APTGT600U120D4G IGBT MODULE 1200V 900A 2500W D4 Microchip Technology	5,551	-	立即询价	数据手册	-	D4	Bulk	Active	Trench Field Stop	Single	1200 V	900 A	2500 W	2.1V @ 15V, 600A	5 mA	40 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	D4
CM100TF-28H IGBT MOD 1400V 100A 780W Powerex Inc.	9,121	-	立即询价	数据手册	IGBTMOD™	Module	Bulk	Obsolete	-	Three Phase Inverter	1400 V	100 A	780 W	4.2V @ 15V, 100A	1 mA	20 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
CM100TF-24H IGBT MOD 1200V 100A 780W Powerex Inc.	2,955	-	立即询价	数据手册	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	-	Three Phase Inverter	1200 V	100 A	780 W	3.4V @ 15V, 100A	1 mA	20 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module

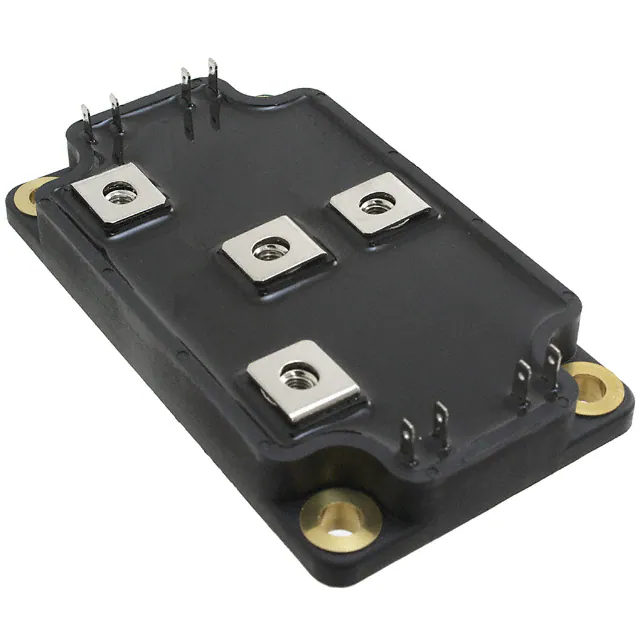

APTGT300TL60G IGBT MODULE 600V 400A 935W SP6 Microchip Technology	9,411	-	立即询价	数据手册	-	SP6	Bulk	Active	Trench Field Stop	Three Level Inverter	600 V	400 A	935 W	1.9V @ 15V, 300A	350 µA	18.4 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	SP6
FS660R08A6P2FLBBPSA1 HYBRID PACK DRIVE Infineon Technologies	4,190	-	立即询价	数据手册	HybridPACK™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	750 V	450 A	1053 W	1.35V @ 15V, 450A	1 mA	80 nF @ 50 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	AG-HYBRIDD-1
QID1210005 IGBT MODULE 1200V 100A 730W Powerex Inc.	6,719	-	立即询价	数据手册	-	-	Bulk	Discontinued at Digi-Key	-	2 Independent	1200 V	100 A	730 W	6.5V @ 15V, 100A	1 mA	16 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	-	-
APTGT150H120G IGBT MODULE 1200V 220A 690W SP6 Microchip Technology	3,023	-	立即询价	数据手册	-	SP6	Bulk	Active	Trench Field Stop	Full Bridge Inverter	1200 V	220 A	690 W	2.1V @ 15V, 150A	350 µA	10.7 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SP6
CM400DU-24F IGBT MOD 1200V 400A 1100W Powerex Inc.	8,958	-	立即询价	数据手册	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	-	Half Bridge	1200 V	400 A	1100 W	2.4V @ 15V, 400A	2 mA	160 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
BSM50GP120BOSA1 IGBT MODULE 1200V 50A Infineon Technologies	9,725	-	立即询价	数据手册	-	Module	Tray	Obsolete	-	3 Phase Inverter	1200 V	80 A	-	2.55V @ 15V, 50A	500 µA	3.3 pF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C	Chassis Mount	Module
APTGL700DA120D3G IGBT MODULE 1200V 840A 3000W D3 Microchip Technology	3,748	-	立即询价	数据手册	-	Module	Bulk	Active	Trench Field Stop	Single	1200 V	840 A	3000 W	2.2V @ 15V, 600A	5 mA	37.2 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	D3
APTGL700SK120D3G IGBT MODULE 1200V 840A 3000W D3 Microchip Technology	3,566	-	立即询价	数据手册	-	Module	Bulk	Active	Trench Field Stop	Single	1200 V	840 A	3000 W	2.2V @ 15V, 600A	5 mA	37.2 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	D3
FF450R12IE4BOSA2 IGBT MOD 1200V 450A 2550W Infineon Technologies	4,587	-	立即询价	数据手册	PrimePACK™2	Module	Tray	Active	Trench Field Stop	2 Independent	1200 V	450 A	2550 W	2.05V @ 15V, 450A	5 mA	27 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
APTGT300A120D3G IGBT MODULE 1200V 440A 1250W D3 Microchip Technology	2,236	-	立即询价	数据手册	-	D-3 Module	Bulk	Active	Trench Field Stop	Half Bridge	1200 V	440 A	1250 W	2.1V @ 15V, 300A	8 mA	20 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	D3
APTGT400U170D4G IGBT MODULE 1700V 800A 2080W D4 Microchip Technology	3,420	-	立即询价	数据手册	-	D4	Bulk	Active	Trench Field Stop	Single	1700 V	800 A	2080 W	2.4V @ 15V, 400A	1 mA	33 nF @ 25 V	Standard	No	-	Chassis Mount	D4
APTGL325A120D3G IGBT MODULE 1200V 420A 1500W D3 Microchip Technology	8,395	-	立即询价	数据手册	-	D-3 Module	Bulk	Active	Trench Field Stop	Half Bridge	1200 V	420 A	1500 W	2.2V @ 15V, 300A	5 mA	18.6 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	D3
CM600DU-24NFH IGBT MOD 1200V 600A 1550W Powerex Inc.	5,713	-	立即询价	数据手册	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	-	Half Bridge	1200 V	600 A	1550 W	6.5V @ 15V, 600A	1 mA	95 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
FS75R12KS4BOSA1 IGBT MOD 1200V 100A 500W Infineon Technologies	9,381	-	立即询价	数据手册	-	Module	Tray	Obsolete	-	Three Phase Inverter	1200 V	100 A	500 W	3.7V @ 15V, 75A	5 mA	5.1 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount	Module
FS400R07A1E3BOSA1 IGBT MOD 650V 500A 1250W Infineon Technologies	3,765	-	立即询价	数据手册	-	Module	Tray	Obsolete	-	Three Phase Inverter	650 V	500 A	1250 W	1.9V @ 15V, 400A	1 mA	26 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	Module
NVH820S75L4SPC AUTOMOTIVE 750V, 820A SSDC POWER onsemi	4,685	-	立即询价	数据手册	-	Module	Bulk	Active	-	Three Phase Inverter	750 V	820 A	1000 W	1.55V @ 15V, 600A	500 µA	-	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SSDC33
NVH820S75L4SPM AUTOMOTIVE 750V, 820A SSDC POWER onsemi	2,131	-	立即询价	数据手册	-	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
