高频（RF）继电器

制造商	系列	包装	产品状态	线圈类型	线圈电流	线圈电压	触点形式	触点额定值（电流）	切换电压	必须动作电压	必须释放电压	动作时间	释放时间	特性	安装类型	端接样式	工作温度
Coto Technology Omron Electronics Inc-EMC Div Panasonic Electric Works Pasternack Standex-Meder Electronics TE Connectivity TE Connectivity Aerospace, Defense and Marine TE Connectivity AMP Connectors TE Connectivity Potter & Brumfield Relays	* - 2200 2300 2600 2900 9000 9200 9270 9290 9400 9800 9853 9900 ARA ARE ARJ ARN ARS ARX ARXP B10 B40 B41 CRF G5Y-1 G6K G6K-RF G6W G6Y G6Z G9YA HF HF3, AXICOM HF3S, AXICOM HF6, AXICOM MW3S, CII MW4HP, CII MW6, CII MW6HP, CII MW6S, CII RK RP	- Box Bulk Retail Package Tape & Reel (TR) Tray Tube	Active Discontinued at Masstock Electronics Not For New Designs Obsolete	- Latching, Dual Coil Latching, Single Coil Non Latching	- 100 mA 11.3 mA 11.7 mA 12 mA 12.5 mA 13.3 mA 13.5 mA 133 mA 133.3 mA 14 mA 14.3 mA 14.5 mA 15 mA 15.5 mA 15.6 mA 15.7 mA 155 mA 16 mA 16.7 mA 17.6 mA 17.9 mA 18.5 mA 20 mA 21.1 mA 21.7 mA 22.2 mA 23.2 mA 23.3 mA 23.4 mA 24 mA 25 mA 26.7 mA 28 mA 28.1 mA 28.6 mA 29.2 mA 30 mA 31 mA 31.1 mA 31.3 mA 33 mA 33.3 mA 4.2 mA 4.6 mA 40 mA 41.7 mA 43 mA 44.4 mA 45.5 mA 46.7 mA 46.9 mA 47 mA 47.1 mA 47.9 mA 48 mA 5.8 mA 50 mA 58.5 mA 6.3 mA 60 mA 66.7 mA 7.8 mA 71.1 mA 72 mA 8 mA 8.3 mA 80 mA 88.9 mA 9.1 mA 93.8 mA	- 1.5VDC 12VDC 18VDC 24VDC 28VDC 3.3VDC 3VDC 4.5VDC 48VDC 5VDC 6VDC 9VDC	- 6PST-NO (6 Form A) DPDT (2 Form C) DPST-NO (2 Form A) SPDT (1 Form C) SPST-NC (1 Form B) SPST-NO (1 Form A) SPST-NO (1 Form A) x 4	- 1 A 1.5 A 10 mA 100 mA 140 mA 2 A 250 mA 300 mA 500 mA	- 100VAC, 100VDC - Max 125VAC, 125VDC - Max 125VAC, 60VDC - Max 12VDC - Nom 150VAC, 150VDC - Max 170VAC, 170VDC - Max 200VAC, 200VDC - Max 200VDC - Max 250VAC - Max 250VAC, 220VDC - Max 28VDC - Nom 30VAC, 30VDC - Max 30VDC - Max 30VDC - Nom 500VAC, 500VDC - Max 50VAC, 50VDC - Max	- 1.13 VDC 10.5 VDC 13.4 VDC 16.8 VDC 18 VDC 19.2 VDC 2.25 VDC 2.4 VDC 2.5 VDC 2.7 VDC 22.4 VDC 3.38 VDC 3.6 VDC 3.7 VDC 3.75 VDC 3.8 VDC 36 VDC 4 VDC 4.5 VDC 4.8 VDC 6.7 VDC 6.75 VDC 7.2 VDC 8.4 VDC 9 VDC 9.6 VDC	- 0.15 VDC 0.22 VDC 0.3 VDC 0.4 VDC 0.45 VDC 0.5 VDC 0.6 VDC 0.75 VDC 0.9 VDC 1 VDC 1.2 VDC 1.8 VDC 2 VDC 2.4 VDC 3.6 VDC 4.8 VDC	- 0.1 ms 0.25 ms 0.35 ms 0.4 ms 0.5 ms 0.55 ms 0.6 ms 1 ms 1.5 ms 10 ms 15 ms 2 ms 3 ms 4 ms 5 ms 6 ms	- 0.02 ms 0.03 ms 0.05 ms 0.1 ms 0.15 ms 0.2 ms 0.5 ms 1 ms 1.5 ms 10 ms 15 ms 2 ms 3 ms 4 ms 5 ms 6 ms	- Diode Diode, Magnetic Shield Magnetic Shield Sealed - Flux Protection Sealed - Fully Sealed - Hermetically TTL Driven	- Chassis Mount Surface Mount Through Hole	- Axial BGA Gull Wing J Lead PC Pin SMD (SMT) Tab Solder Lug	- -20°C ~ 125°C -20°C ~ 70°C -20°C ~ 85°C -25°C ~ 60°C -25°C ~ 65°C -30°C ~ 70°C -40°C ~ 125°C -40°C ~ 60°C -40°C ~ 70°C -40°C ~ 85°C -55°C ~ 85°C -65°C ~ 125°C

全部重置

全部应用

结果

制造商料号	库存情况	价格	数量	数据手册	系列	包装	产品状态	线圈类型	线圈电流	线圈电压	触点形式	触点额定值（电流）	切换电压	必须动作电压	必须释放电压	动作时间	释放时间	特性	安装类型	端接样式	工作温度
ARA200A05 RELAY RF DPDT 1A 5V Panasonic Electric Works	1,767	-	立即询价	数据手册	ARA	Tube	Active	Non Latching	28.1 mA	5VDC	DPDT (2 Form C)	1 A	30VDC - Max	3.75 VDC	0.5 VDC	4 ms	4 ms	-	Surface Mount	Gull Wing	-40°C ~ 85°C
ARS14Y4H RELAY RF SPDT 500MA 4.5V Panasonic Electric Works	506	-	立即询价	数据手册	ARS	Tube	Active	Non Latching	44.4 mA	4.5VDC	SPDT (1 Form C)	500 mA	30VDC - Max	3.38 VDC	0.45 VDC	10 ms	6 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
G6K-2F-RF-T DC5 RELAY RF DPDT 1A 5V Omron Electronics Inc-EMC Div	3,583	-	立即询价	数据手册	G6K-RF	Tray	Active	Non Latching	21.1 mA	5VDC	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	4 VDC	0.5 VDC	3 ms	3 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
1462050-2 RELAY RF SPDT 2A 5V TE Connectivity Potter & Brumfield Relays	9,101	-	立即询价	数据手册	HF3, AXICOM	Tape & Reel (TR)	Active	Non Latching	28 mA	5VDC	SPDT (1 Form C)	2 A	250VAC, 220VDC - Max	3.75 VDC	0.5 VDC	5 ms	4 ms	-	Surface Mount	Gull Wing	-55°C ~ 85°C
1462051-2 RELAY RF SPDT 2A 5V TE Connectivity Potter & Brumfield Relays	239	-	立即询价	数据手册	HF3, AXICOM	Tape & Reel (TR)	Active	Non Latching	28 mA	5VDC	SPDT (1 Form C)	2 A	250VAC, 220VDC - Max	3.75 VDC	0.5 VDC	5 ms	4 ms	-	Surface Mount	Gull Wing	-55°C ~ 85°C
G6K-2F-RF-T-TR03 DC12 RELAY RF DPDT 1A 12V Omron Electronics Inc-EMC Div	107	-	立即询价	数据手册	G6K-RF	Tape & Reel (TR)	Active	Non Latching	9.1 mA	12VDC	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	9.6 VDC	1.2 VDC	3 ms	3 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
G6K-2P-RF DC5 RELAY RF DPDT 1A 5V Omron Electronics Inc-EMC Div	2,027	-	立即询价	数据手册	G6K-RF	Tube	Active	Non Latching	21.1 mA	5VDC	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	4 VDC	0.5 VDC	3 ms	3 ms	-	Through Hole	PC Pin	-40°C ~ 70°C
G6K-2F-RF-T DC12 RELAY RF DPDT 1A 12V Omron Electronics Inc-EMC Div	3,290	-	立即询价	数据手册	G6K-RF	Tray	Active	Non Latching	9.1 mA	12VDC	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	9.6 VDC	1.2 VDC	3 ms	3 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
G6K-2F-RF-S-TR03 DC3 RELAY RF DPDT 1A 3V Omron Electronics Inc-EMC Div	444	-	立即询价	数据手册	G6K-RF	Tape & Reel (TR)	Active	Non Latching	33 mA	3VDC	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	2.4 VDC	0.3 VDC	3 ms	3 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
G6K-2F-RF-S DC12 RELAY RF DPDT 1A 12V Omron Electronics Inc-EMC Div	5,964	-	立即询价	数据手册	G6K-RF	Tray	Active	Non Latching	9.1 mA	12VDC	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	9.6 VDC	1.2 VDC	3 ms	3 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
G6K-2F-RF-S DC5 RELAY RF DPDT 1A 5V Omron Electronics Inc-EMC Div	3,803	-	立即询价	数据手册	G6K-RF	Tray	Active	Non Latching	21.1 mA	5VDC	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	4 VDC	0.5 VDC	3 ms	3 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
G6K-2F-RF-S DC3 RELAY RF DPDT 1A 3V Omron Electronics Inc-EMC Div	250	-	立即询价	数据手册	G6K-RF	Tray	Active	Non Latching	33 mA	3VDC	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	2.4 VDC	0.3 VDC	3 ms	3 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
G6K-2F-RF DC5 RELAY RF DPDT 1A 5V Omron Electronics Inc-EMC Div	11,250	-	立即询价	数据手册	G6K-RF	Tray	Active	Non Latching	21.1 mA	5VDC	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	4 VDC	0.5 VDC	3 ms	3 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
G6K-2F-RF-S-TR03 DC5 RELAY RF DPDT 1A 5V Omron Electronics Inc-EMC Div	2,621	-	立即询价	数据手册	G6K-RF	Tape & Reel (TR)	Active	Non Latching	21.1 mA	5VDC	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	4 VDC	0.5 VDC	3 ms	3 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C

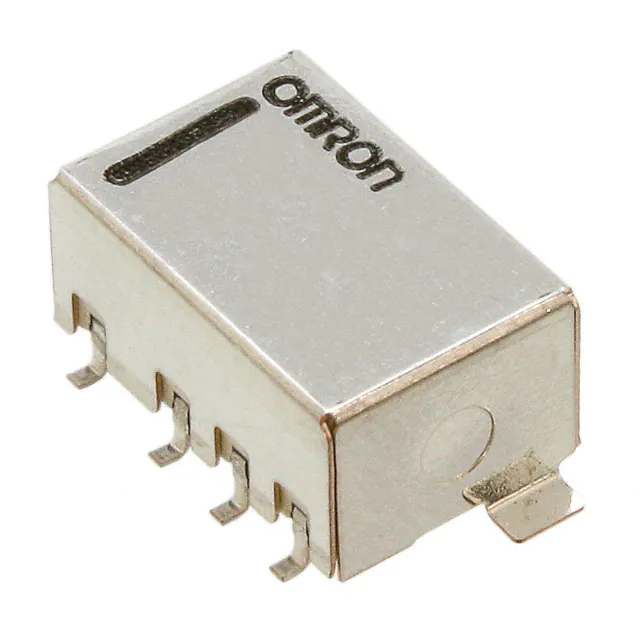

G6KU-2F-RF DC5 RELAY RF DPDT 1A 5V Omron Electronics Inc-EMC Div	1,193	-	立即询价	数据手册	G6K-RF	Tray	Active	Latching, Single Coil	21.1 mA	5VDC	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	3.75 VDC	-	3 ms	3 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
1-1462051-4 RELAY RF SPDT 2A 12V TE Connectivity Potter & Brumfield Relays	1,231	-	立即询价	数据手册	HF3, AXICOM	Tape & Reel (TR)	Active	Latching, Dual Coil	11.7 mA	12VDC	SPDT (1 Form C)	2 A	250VAC, 220VDC - Max	9 VDC	-	3 ms	2 ms	-	Surface Mount	Gull Wing	-55°C ~ 85°C
2341-05-020 RELAY RF SPDT 500MA 5V Coto Technology	3,358	-	立即询价	数据手册	2300	Tube	Active	Non Latching	21.7 mA	5VDC	SPDT (1 Form C)	500 mA	200VAC, 200VDC - Max	3.8 VDC	0.4 VDC	0.5 ms	0.5 ms	Sealed - Hermetically	Through Hole	PC Pin	-20°C ~ 85°C
2341-12-020 RELAY RF SPDT 500MA 12V Coto Technology	1,484	-	立即询价	数据手册	2300	Tube	Active	Non Latching	12 mA	12VDC	SPDT (1 Form C)	500 mA	200VAC, 200VDC - Max	9 VDC	1 VDC	0.5 ms	0.5 ms	Sealed - Hermetically	Through Hole	PC Pin	-20°C ~ 85°C
2-1462051-3 RELAY RF SPDT 2A 5V TE Connectivity Potter & Brumfield Relays	819	-	立即询价	数据手册	HF3S, AXICOM	Tape & Reel (TR)	Active	Non Latching	28 mA	5VDC	SPDT (1 Form C)	2 A	250VAC, 220VDC - Max	3.75 VDC	0.5 VDC	5 ms	5 ms	-	Surface Mount	Gull Wing	-55°C ~ 85°C
G6KU-2F-RF-T DC5 RELAY RF DPDT 1A 5V Omron Electronics Inc-EMC Div	275	-	立即询价	数据手册	G6K-RF	Tray	Active	Latching, Single Coil	21.1 mA	5VDC	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	3.75 VDC	-	3 ms	3 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
