Korean固定电感器
| 图片 | 制造商料号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP2A-330-RFIXED IND 33UH 790MA 476MOHM SMD |
7,618 |
|
 数据手册
|
MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 33 µH | ±20% | 790 mA | 790mA | Unshielded | 476mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
|

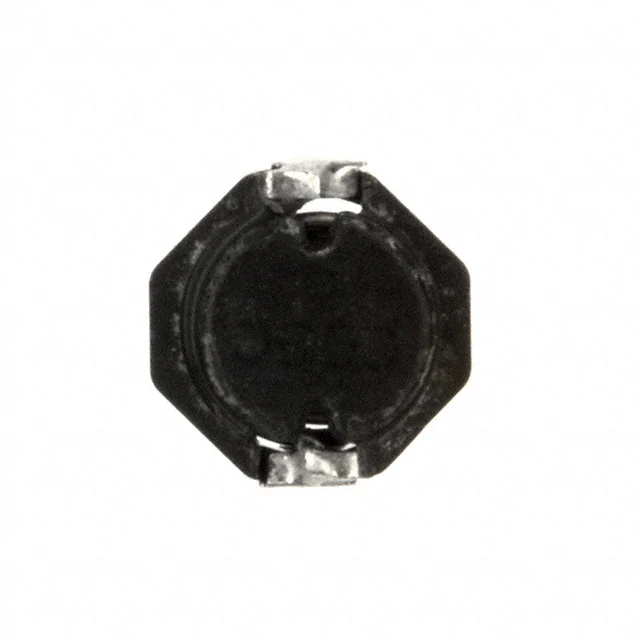

SD53-3R3-RFIXED IND 3.3UH 2.26A 34MOHM SMD |
4,095 |
|
数据手册
|
SD53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.26 A | 2.6A | Shielded | 34mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
PA0432LNLFIXED IND 12.1UH 20.5A 7.5 MOHM |
1,860 |
|
数据手册
|
Bare Coil | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 12.1 µH | ±20% | 20.5 A | - | Unshielded | 7.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.980" Dia x 0.441" W (24.90mm x 11.20mm) | - |
|
1422311CFIXED IND 22UH 11A 14 MOHM TH |
1,391 |
|
数据手册
|
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 22 µH | ±15% | 11 A | - | Unshielded | 14mOhm Max | 64 @ 100kHz | 9.3MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.063" Dia (27.00mm) | 0.610" (15.50mm) |
|
|
1410454CFIXED IND 100UH 5.4A 46 MOHM TH |
766 |
|
数据手册
|
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 100 µH | ±10% | 5.4 A | - | Unshielded | 46mOhm Max | 24 @ 100kHz | 4.6MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.039" Dia (26.40mm) | 0.610" (15.50mm) |
|
|
1410516CFIXED IND 1MH 1.6A 460 MOHM TH |
189 |
|
数据手册
|
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 1 mH | ±10% | 1.6 A | - | Unshielded | 460mOhm Max | 30 @ 50kHz | 1.4MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.008" Dia (25.60mm) | 0.610" (15.50mm) |
|
SD53-470-RFIXED IND 47UH 640MA 352MOHM SMD |
6,799 |
|
数据手册
|
SD53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 640 mA | 640mA | Shielded | 352mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
74439344033FIXED IND 3.3UH 6A 19.2MOHM SMD |
1,539 |
|
数据手册
|
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 6 A | 14.5A | Shielded | 19.2mOhm | - | 34MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
|
74439344022FIXED IND 2.2UH 8A 10.5MOHM SMD |
919 |
|
数据手册
|
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 8 A | 16A | Shielded | 10.5mOhm | - | 36MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
|
74439344010FIXED IND 1UH 12A 5.5 MOHM SMD |
664 |
|
数据手册
|
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 12 A | 27.5A | Shielded | 5.5mOhm | - | 59MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
CDEP134NP-3R6MC-HFIXED IND 3.6UH 7.5A 12 MOHM SMD |
4,084 |
|
数据手册
|
CDEP134 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.6 µH | ±20% | 7.5 A | 12.5A | Shielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
IHLP6767GZER1R0M01FIXED IND 1UH 48A 1.38 MOHM SMD |
2,637 |
|
数据手册
|
IHLP-6767GZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 48 A | 73A | Shielded | 1.38mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
ISC1812ER102JFIXED IND 1MH 66MA 16 OHM SMD |
3,500 |
|
数据手册
|
ISC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 66 mA | - | Shielded | 16Ohm Max | 30 @ 252kHz | 2MHz | - | -55°C ~ 125°C | 252 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
DI2220V301R-10FIXED IND 300NH 8A 10 MOHM SMD |
10,431 |
|
数据手册
|
DI | 2220 (5650 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 300 nH | ±10% | 8 A | - | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.220" L x 0.200" W (5.59mm x 5.08mm) | 0.152" (3.86mm) |
|
1812R-104JFIXED IND 100UH 158MA 8 OHM SMD |
52,141 |
|
数据手册
|
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±5% | 158 mA | - | Unshielded | 8Ohm Max | 50 @ 2.5MHz | 8MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-334JFIXED IND 330UH 120MA 14 OHM SMD |
4,699 |
|
数据手册
|
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±5% | 120 mA | - | Unshielded | 14Ohm Max | 40 @ 790kHz | 3.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-105JFIXED IND 1MH 55MA 60 OHM SMD |
546 |
|
数据手册
|
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±5% | 55 mA | - | Unshielded | 60Ohm Max | 30 @ 790kHz | 2.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SD25-100-RFIXED IND 10UH 1.8A 82.4MOHM SMD |
3,031 |
|
数据手册
|
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.8 A | 1.27A | Shielded | 82.4mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|

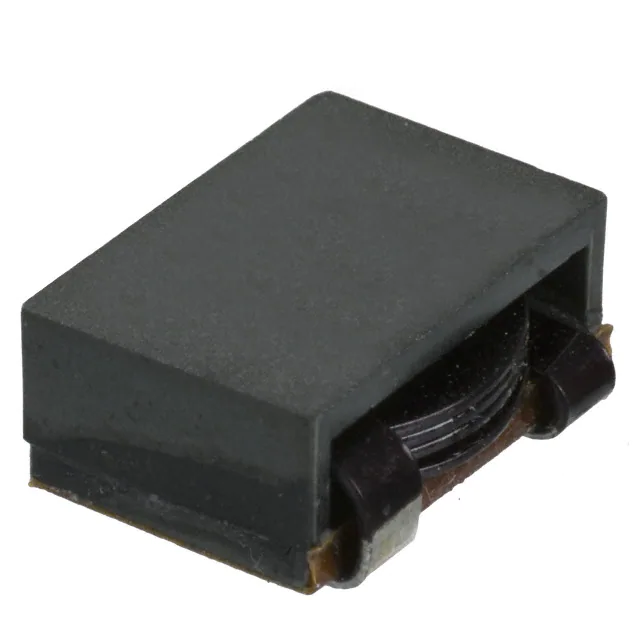

B82559A0242A013FIXED IND 2.4UH 16.5A 2.76 MOHM |
3,302 |
|
数据手册
|
ERU13 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.4 µH | ±10% | 16.5 A | 16.5A | Shielded | 2.76mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.512" L x 0.421" W (13.00mm x 10.70mm) | 0.234" (5.95mm) |
|

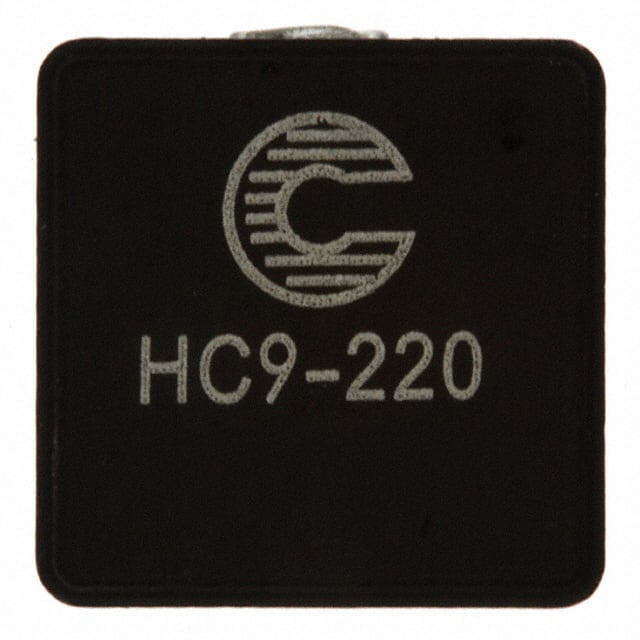

HC9-220-RFIXED IND 22UH 6.3A 25.7MOHM SMD |
10,313 |
|
数据手册
|
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 22 µH | ±15% | 6.3 A | 8.7A | Unshielded | 25.7mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.555" L x 0.516" W (14.10mm x 13.10mm) | 0.295" (7.50mm) |
分类概览
固定电感器 产品与选型指南
固定电感器 广泛应用于工业控制、汽车电子、通信设备、消费电子、新能源及其他电子系统。我们提供多品牌、多封装及不同规格的相关产品，方便工程师、采购人员和研发团队进行型号筛选、参数比较和采购询价。
您可以根据制造商、关键参数、库存情况及 Datasheet 信息筛选适合的 固定电感器。如暂时没有找到完全匹配的型号，也可以提交询价，我们将协助确认库存、交期以及可替代型号。
FAQ
如何选择合适的 固定电感器？
建议先确认电气参数、封装、工作温度、应用环境以及品牌要求，再结合库存和交期进行筛选。
页面上的库存信息是否可以直接采购？
库存会随供应情况变化。对于项目采购或批量需求，建议提交询价，以便进一步确认实时库存、价格和交期。
找不到指定型号怎么办？
您可以提交型号和数量需求，我们可以协助查询缺货型号，并根据参数提供可替代型号建议。
是否可以提供 Datasheet 和技术资料？
可以。产品列表中的 Datasheet 链接可用于查看相关技术资料；如资料暂缺，也可以联系我们协助查找。
