Korean固定电感器
| 图片 | 制造商料号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

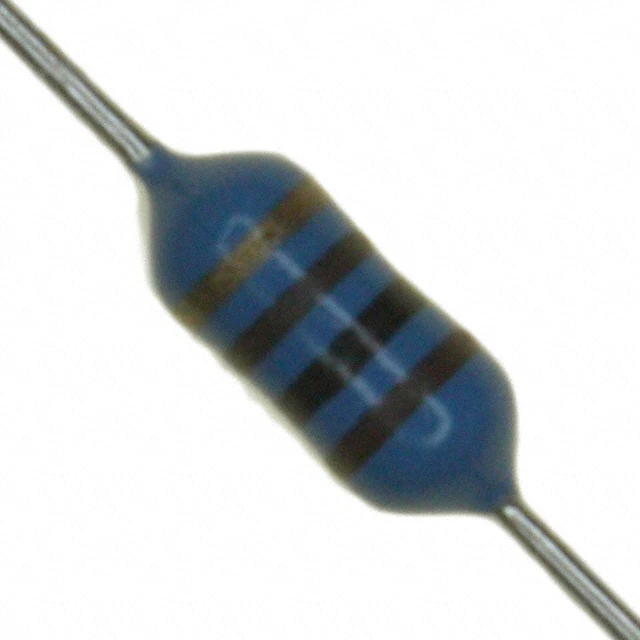

78F101J-TR-RCFIXED IND 100UH 165MA 4.1 OHM TH Bourns Inc. |
12,215 |
|
 数据手册
|
78F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 165 mA | - | Unshielded | 4.1Ohm Max | 60 @ 2.5MHz | 5.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
77F470J-TR-RCFIXED IND 47UH 340MA 1.3 OHM TH Bourns Inc. |
11,011 |
|
数据手册
|
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 340 mA | - | Unshielded | 1.3Ohm Max | 45 @ 2.52MHz | 6.3MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
78F102J-TR-RCFIXED IND 1MH 60MA 31.4 OHM TH Bourns Inc. |
10,451 |
|
数据手册
|
78F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 60 mA | - | Unshielded | 31.4Ohm Max | 60 @ 790kHz | 1.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78FR47K-RCFIXED IND 470NH 1A 110 MOHM TH Bourns Inc. |
10,184 |
|
数据手册
|
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±10% | 1 A | - | Unshielded | 110mOhm Max | 40 @ 25MHz | 270MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F120J-RCFIXED IND 12UH 350MA 800 MOHM TH Bourns Inc. |
9,793 |
|
数据手册
|
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±5% | 350 mA | - | Unshielded | 800mOhm Max | 45 @ 2.5MHz | 16MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
77F102J-TR-RCFIXED IND 1MH 100MA 20 OHM TH Bourns Inc. |
9,594 |
|
数据手册
|
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 100 mA | - | Unshielded | 20Ohm Max | 50 @ 796kHz | 1.2MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
|
78F331J-RCFIXED IND 330UH 100MA 11.1OHM TH Bourns Inc. |
9,543 |
|
数据手册
|
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±5% | 100 mA | - | Unshielded | 11.1Ohm Max | 60 @ 790kHz | 3.4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F221J-RCFIXED IND 220UH 130MA 6.8 OHM TH Bourns Inc. |
9,487 |
|
数据手册
|
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 130 mA | - | Unshielded | 6.8Ohm Max | 60 @ 790kHz | 4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F1R5K-RCFIXED IND 1.5UH 700MA 200MOHM TH Bourns Inc. |
9,412 |
|
数据手册
|
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 700 mA | - | Unshielded | 200mOhm Max | 50 @ 7.9MHz | 150MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F180J-RCFIXED IND 18UH 315MA 1 OHM TH Bourns Inc. |
9,237 |
|
数据手册
|
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±5% | 315 mA | - | Unshielded | 1Ohm Max | 50 @ 2.5MHz | 15MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
