Korean固定电感器
| 图片 | 制造商料号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78438357068FIXED IND 6.8UH 3A 74 MOHM SMD |
881 |
|
 数据手册
|
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Alloy | 6.8 µH | ±20% | 3 A | 5.5A | Shielded | 74mOhm Max | - | 19.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
|
|
78438357100FIXED IND 10UH 2.7A 110MOHM SMD |
685 |
|
数据手册
|
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Alloy | 10 µH | ±20% | 2.7 A | 4.6A | Shielded | 110mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
|
FP0906R1-R15-RFIXED IND 150NH 51A 0.29MOHM SMD |
4,321 |
|
数据手册
|
FLAT-PAC, FP0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±10% | 51 A | 65A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.315" (8.00mm) |
|
CDRH127NP-470MCFIXED IND 47UH 2.5A 100 MOHM SMD |
15,570 |
|
数据手册
|
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 2.5 A | - | Shielded | 100mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
ASPIAIG-F4020-2R2M-TFIXED IND 2.2UH 5.6A 38.7MOHM SM |
11,645 |
|
数据手册
|
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 5.6 A | 6A | Shielded | 38.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
CDRH127NP-330MCFIXED IND 33UH 3A 64.8 MOHM SMD |
2,880 |
|
数据手册
|
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 3 A | - | Shielded | 64.8mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
SRP6030CA-3R3MFIXED IND 3.3UH 8A 20.8 MOHM SMD |
2,268 |
|
数据手册
|
SRP6030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 8 A | 12.2A | Shielded | 20.8mOhm Max | - | 25MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
|
|
CDRH127NP-100MCFIXED IND 10UH 5.4A 21.6MOHM SMD |
1,727 |
|
数据手册
|
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 5.4 A | - | Shielded | 21.6mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127NP-6R1NCFIXED IND 6.1UH 6.6A 17.6MOHM SM |
1,032 |
|
数据手册
|
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.1 µH | -20%, +40% | 6.6 A | - | Shielded | 17.6mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SRP6030CA-1R8MFIXED IND 1.8UH 14A 10.2MOHM SMD |
122 |
|
数据手册
|
SRP6030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.8 µH | ±20% | 14 A | 18.2A | Shielded | 10.2mOhm Max | - | 33MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
|
VCHA075D-4R7MS6FIXED IND 4.7UH 7A 20.9MOHM SMD |
2,367 |
|
数据手册
|
VCHA075D | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 7 A | 11.2A | Unshielded | 20.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.283" W (7.70mm x 7.20mm) | 0.213" (5.40mm) |
|
SD53-2R0-RFIXED IND 2UH 2.64A 27 MOHM SMD |
12,898 |
|
数据手册
|
SD53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2 µH | ±20% | 2.64 A | 3.3A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
PA5001.102NLTFIXED IND 1UH 9.6A 14.6MOHM SMD |
41,322 |
|
数据手册
|
PA5001.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1 µH | ±20% | 9.6 A | 9.6A | Shielded | 14.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
LQW15DN100M00DFIXED IND 10UH 120MA 5.405OHM SM |
10,460 |
|
数据手册
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 120 mA | 120mA | Shielded | 5.405Ohm Max | - | 20MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0402 | 0.043" L x 0.026" W (1.10mm x 0.65mm) | 0.028" (0.70mm) |
|

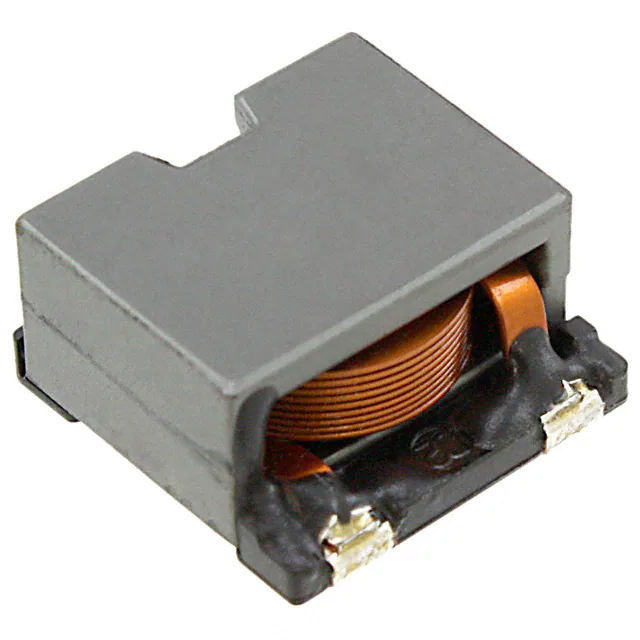

CDEP147NP-120MC-125FIXED IND 12UH 8.5A 13.31MOHM SM |
716 |
|
数据手册
|
CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 8.5 A | 8A | Shielded | 13.31mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.315" (8.00mm) |
|
|
CDEP147NP-100MC-125FIXED IND 10UH 10A 9.85 MOHM SMD |
11,533 |
|
数据手册
|
CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 10 A | 9.2A | Shielded | 9.85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.315" (8.00mm) |
|
|
CDEP147NP-6R1MC-95FIXED IND 6.1UH 11A 7.8 MOHM SMD |
3,722 |
|
数据手册
|
CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.1 µH | ±20% | 11 A | 14.8A | Shielded | 7.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.315" (8.00mm) |
|

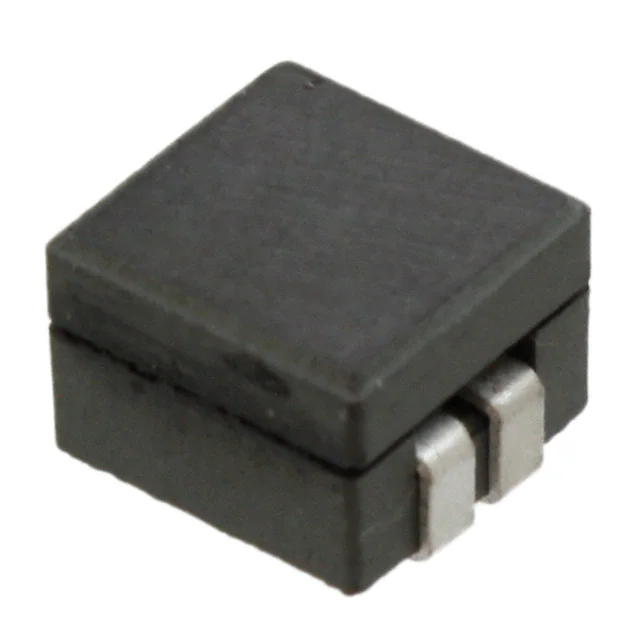

FPT705-200-RFIXED IND 200NH 13A 0.65MOHM SMD |
5,591 |
|
数据手册
|
FLAT-PAC, FPT705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±10% | 13 A | 25A | Shielded | 0.65mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.276" W (7.20mm x 7.00mm) | 0.211" (5.35mm) |
|
SD53-100-RFIXED IND 10UH 1.41A 90 MOHM SMD |
2,131 |
|
数据手册
|
SD53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.41 A | 1.4A | Shielded | 90mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
SRP1265A-220MFIXED IND 22UH 9A 37 MOHM SMD |
37,352 |
|
数据手册
|
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 22 µH | ±20% | 9 A | 12A | Shielded | 37mOhm Max | 20 @ 100kHz | 6MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
分类概览
固定电感器 产品与选型指南
固定电感器 广泛应用于工业控制、汽车电子、通信设备、消费电子、新能源及其他电子系统。我们提供多品牌、多封装及不同规格的相关产品，方便工程师、采购人员和研发团队进行型号筛选、参数比较和采购询价。
您可以根据制造商、关键参数、库存情况及 Datasheet 信息筛选适合的 固定电感器。如暂时没有找到完全匹配的型号，也可以提交询价，我们将协助确认库存、交期以及可替代型号。
FAQ
如何选择合适的 固定电感器？
建议先确认电气参数、封装、工作温度、应用环境以及品牌要求，再结合库存和交期进行筛选。
页面上的库存信息是否可以直接采购？
库存会随供应情况变化。对于项目采购或批量需求，建议提交询价，以便进一步确认实时库存、价格和交期。
找不到指定型号怎么办？
您可以提交型号和数量需求，我们可以协助查询缺货型号，并根据参数提供可替代型号建议。
是否可以提供 Datasheet 和技术资料？
可以。产品列表中的 Datasheet 链接可用于查看相关技术资料；如资料暂缺，也可以联系我们协助查找。
