Korean固定电感器
| 图片 | 制造商料号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

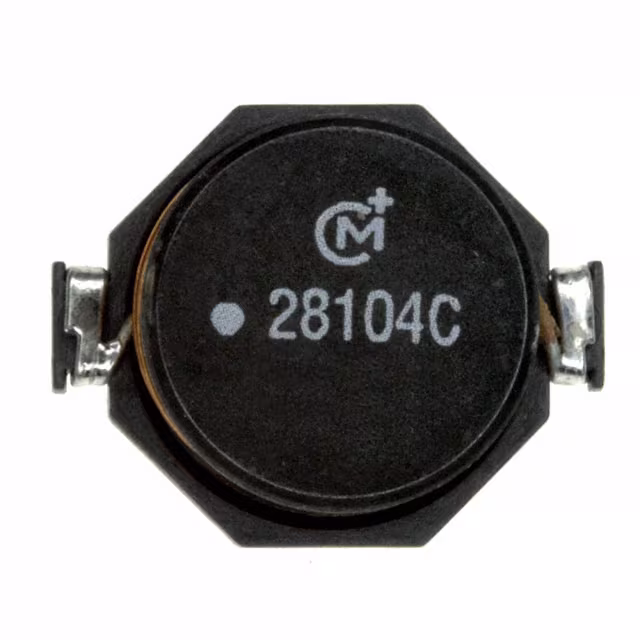

28104CFIXED IND 100UH 1.8A 174MOHM SMD Murata Power Solutions Inc. |
0 |
|
 数据手册
|
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | - | 1.8 A | - | Unshielded | 174mOhm Max | 21.4 @ 800kHz | 7.7MHz | - | -40°C ~ 125°C | 800 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

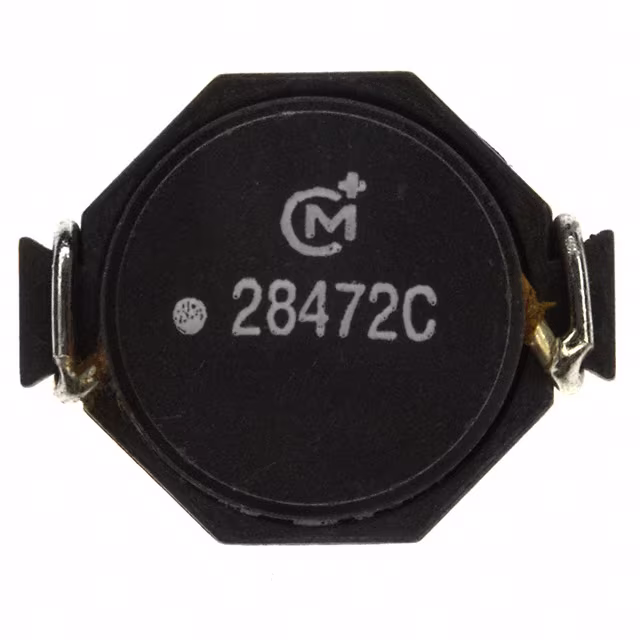

28472CFIXED IND 4.7UH 8.3A 10 MOHM SMD Murata Power Solutions Inc. |
0 |
|
数据手册
|
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | - | 8.3 A | - | Unshielded | 10mOhm Max | 33.3 @ 1MHz | 37MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
28473CFIXED IND 47UH 2.66A 86 MOHM SMD Murata Power Solutions Inc. |
0 |
|
数据手册
|
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | - | 2.66 A | - | Unshielded | 86mOhm Max | 31.5 @ 1MHz | 10.4MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

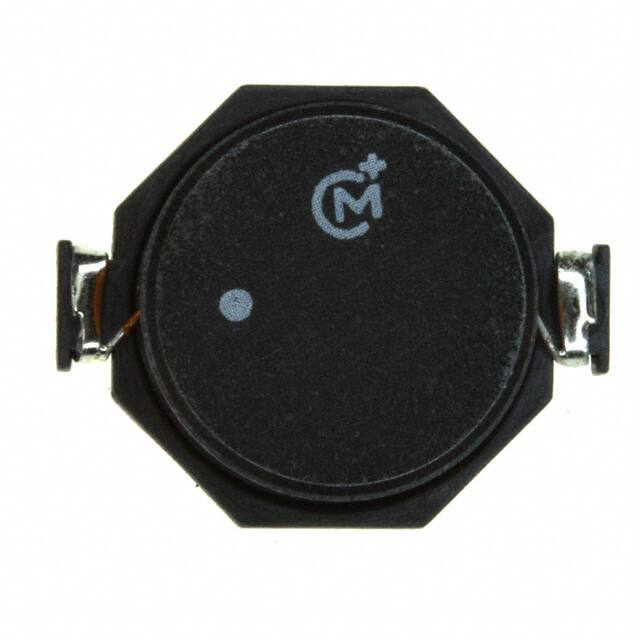

28474CFIXED IND 470UH 780MA 816MOHM SM Murata Power Solutions Inc. |
0 |
|
数据手册
|
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 µH | - | 780 mA | - | Unshielded | 816mOhm Max | 31.7 @ 800kHz | 4.3MHz | - | -40°C ~ 125°C | 800 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

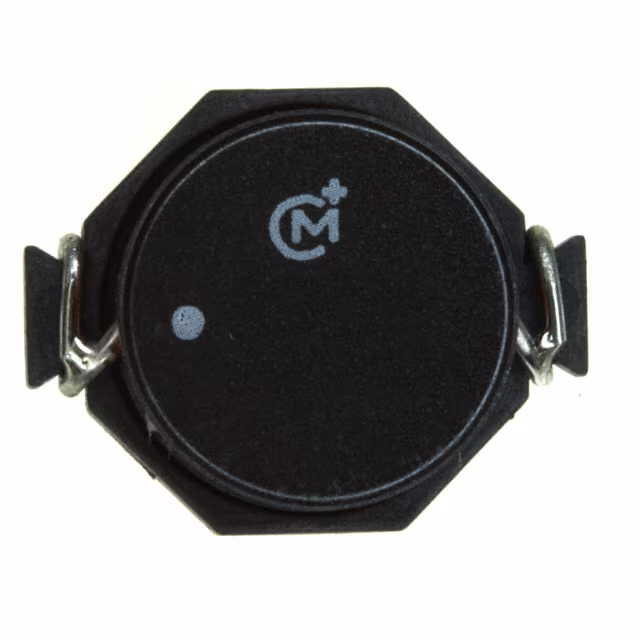

28682CFIXED IND 6.8UH 6.8A 14 MOHM SMD Murata Power Solutions Inc. |
0 |
|
数据手册
|
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | - | 6.8 A | - | Unshielded | 14mOhm Max | 31.2 @ 1MHz | 29MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

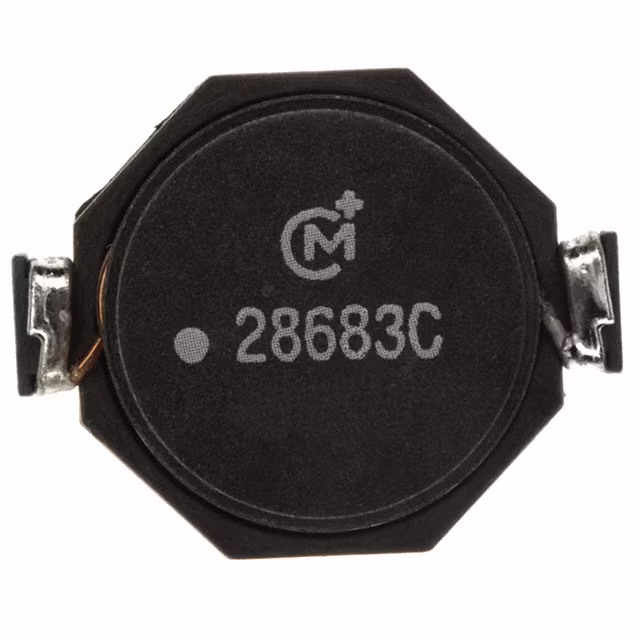

28683CFIXED IND 68UH 2.16A 122MOHM SMD Murata Power Solutions Inc. |
0 |
|
数据手册
|
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | - | 2.16 A | - | Unshielded | 122mOhm Max | 33.9 @ 1MHz | 8.6MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
35112CFIXED IND 1.1UH 8A 15 MOHM SMD Murata Power Solutions Inc. |
0 |
|
数据手册
|
3500 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.1 µH | ±25% | 8 A | - | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.126" (3.20mm) |
|
35152CFIXED IND 1.5UH 6.5A 19 MOHM SMD Murata Power Solutions Inc. |
0 |
|
数据手册
|
3500 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±25% | 6.5 A | - | Unshielded | 19mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.126" (3.20mm) |
|
35251CFIXED IND 250NH 15.5A 4.5MOHM SM Murata Power Solutions Inc. |
0 |
|
数据手册
|
3500 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 250 nH | ±25% | 15.5 A | - | Unshielded | 4.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.126" (3.20mm) |
|

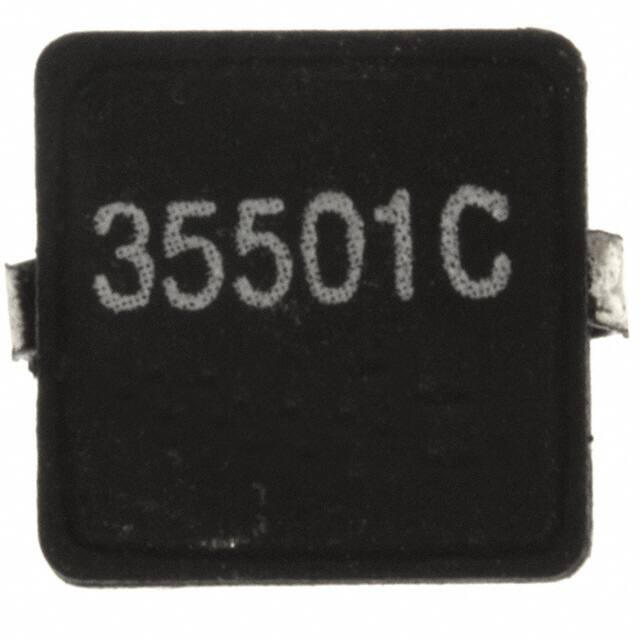

35501CFIXED IND 500NH 11.5A 7 MOHM SMD Murata Power Solutions Inc. |
0 |
|
数据手册
|
3500 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 500 nH | ±25% | 11.5 A | - | Unshielded | 7mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.126" (3.20mm) |
