Korean紧急停止（E-Stop）开关
| 图片 | 制造商料号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 复位操作 | 电路 | 开关功能 | 特性 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 面板开孔尺寸 | 端接样式 | 防护等级 | 工作温度 | 照明电压（额定值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
73-00002.2SWITCH E-STOP TWIST RESET 2A 30V |
9 |
|
 数据手册
|
84 SmartBox | Bulk | Active | Chassis Mount | Twist | DPST-NC | On-Off | Control Box Enclosure, Illuminated (Red) | 2A (DC) | - | 30 V | - | Connector | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C | - |
|

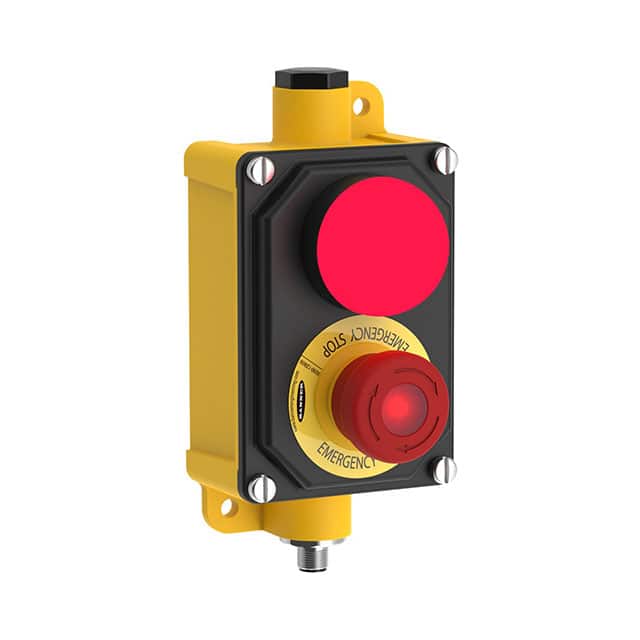

SSA-EB1PL2-12EB1Q12K50SW ESTOP PULL/TWIST RESET 2A 30V |
2 |
|
数据手册
|
SSA-EB | Box | Active | Chassis Mount | Pull or Twist | 3PST-2NC/1NO | On-Off, Off-On | Control Box Enclosure, Illuminated (Red) | 2A (DC) | - | 30 V | - | Connector | IP65 - Dust Tight, Water Resistant | - | 24 VAC/DC |
|
PBES16L10RSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
数据手册
|
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
PBES16L1CRSWITCH ESTOP TWIST RESET 3A 125V |
97 |
|
数据手册
|
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VDC |
|
|
PBES16L1IRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
数据手册
|
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 14 VAC/DC |
|
|
PBES16L1JRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
数据手册
|
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 28 VAC/DC |
|
|
PBES16L3MRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
数据手册
|
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 33 VAC/DC |
|
|
PBES16L3LRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
数据手册
|
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 60 VAC/DC |
|
|
PBES16L2MRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
数据手册
|
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NO + SPST-NC | On-Off, Off-On | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 33 VAC/DC |
|
|
PBES16L30RSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
数据手册
|
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
PBES16L2KRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
数据手册
|
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NO + SPST-NC | On-Off, Off-On | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 48 VAC/DC |
|
|
PBES16L2LRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
数据手册
|
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NO + SPST-NC | On-Off, Off-On | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 60 VAC/DC |
|
|
PBES16L3KRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
数据手册
|
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 48 VAC/DC |
|
|
PBES16L3ORSWITCH ESTOP TWIST RESET 3A 125V |
49 |
|
数据手册
|
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 14 VAC/DC |
|
|
PBES16L2NRSWITCH ESTOP TWIST RESET 3A 125V |
49 |
|
数据手册
|
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NO + SPST-NC | On-Off, Off-On | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 6 VAC/DC |
|
|
PBES16L3HRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
数据手册
|
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 6 VAC/DC |
|
|
PBES16L3JRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
数据手册
|
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 28 VAC/DC |
|
|
PBES16L3BRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
数据手册
|
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 12 VDC |
|
|
PBES16L3ARSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
数据手册
|
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 6 VDC |
|
|
PBES16L3CRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
数据手册
|
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VDC |
分类概览
紧急停止（E-Stop）开关 产品与选型指南
紧急停止（E-Stop）开关 广泛应用于工业控制、汽车电子、通信设备、消费电子、新能源及其他电子系统。我们提供多品牌、多封装及不同规格的相关产品，方便工程师、采购人员和研发团队进行型号筛选、参数比较和采购询价。
您可以根据制造商、关键参数、库存情况及 Datasheet 信息筛选适合的 紧急停止（E-Stop）开关。如暂时没有找到完全匹配的型号，也可以提交询价，我们将协助确认库存、交期以及可替代型号。
FAQ
如何选择合适的 紧急停止（E-Stop）开关？
建议先确认电气参数、封装、工作温度、应用环境以及品牌要求，再结合库存和交期进行筛选。
页面上的库存信息是否可以直接采购？
库存会随供应情况变化。对于项目采购或批量需求，建议提交询价，以便进一步确认实时库存、价格和交期。
找不到指定型号怎么办？
您可以提交型号和数量需求，我们可以协助查询缺货型号，并根据参数提供可替代型号建议。
是否可以提供 Datasheet 和技术资料？
可以。产品列表中的 Datasheet 链接可用于查看相关技术资料；如资料暂缺，也可以联系我们协助查找。
