DIP 开关

制造商	系列	包装	产品状态	电路	位置数量	电流额定值（安培）	电压额定值	执行器类型	执行器水平	触点材料	触点表面处理	板上高度	安装类型	端接样式	间距	可清洗	特性	工作温度
APEM Inc. Bourns Inc. C&K CIT Relay and Switch CTS Electrocomponents E-Switch GC Electronics Grayhill Inc. KaiFeng Electronics knitter-switch Nidec Components NKK Switches Omron Electronics Inc-EMC Div PTR HARTMANN Same Sky (Formerly CUI Devices) TE Connectivity TE Connectivity ALCOSWITCH Switches Würth Elektronik	* - 193 194 195 204 206 206RA 208 208RA 209 210 218 219 219G 220 221 7000 7100 76 7600 76HP 78 7813 7814 7829 78C 78H 79A 79B 79C 90B 90GB 90HB 90HGB 94H 94R 97 A6A A6C A6D A6DR A6E A6E-N A6ER A6FR A6H A6HF A6HR A6K A6KS A6R A6RS A6RV A6S A6S-H A6SN A6SR A6T A6TN A6TR ADE ADF ADP ADPA AMP ARE ARF ARP ATT BD BDB BP BPA CAS CD CES CFP CFS CHP CHS CJS CMS CRD CRE CS-32 CS-4 CS-7 CVS DA DBP DBS DH DHN DHP 600 DHS DIP DIP-FIX DM DMR DP DPL DPU DR DR75 DRD DRR DRS DS DS01-254 DS02-254 DS03-254 DS04-254 DS04-254-SMT DS05-127-SMT DSR DSS DTS EDS EDSP FD01 FD02 FR01 FR02 GDB GDH GDHL GDP GDR GDS IKD IKE IKH IKN JS KAC KAD KAE KAG KAJ KAN KAP KAR KAS KAT KAW KC1901 KE KG KJ KP KR KT LDN LDNA MDG MGDH MPG MRD MRSS ND ND3 NDA NDI NDP NDPL NDS NHDS P25 P36 P36S P36SMJ P36SMT P36THR P56 P60A P60AS P65 P65SMT P65THR PI PT65 RD07 RD10 RDM RDS-1045 RDS-1045-SMT RDS-1055 RDS-1055-SMT RDS-7229-ASMT RDS-7229-CR RDS-7229-D RDS-7229-JSMT RDS-7229-SMT RDS-74365 RDS-74365-45A RDS-74385-45A-SMT RDS-74385-SMT RDS-74R-254 RDS-74R-508 RDS-74R45A-254 RDS-74R45A-508 RDS1-1065-D-67 RDS1-1065-SMT-67 RDS2-1012-RA-67 RDS3-1012-RA RDS3-1065-D RDS3-1065-SMT RDS4-1012-RA-67 RDS4-1065-D-67 RDS4-1065-SMT-67 RDS5-1011-RA-67 RDS5-1065-D-67 RDS5-1065-SMT-67 RDS6-1011-RA RDS6-1065-D RDS6-1065-SMT RDS7-1011-RA-67 RDS7-1065-D-67 RDS7-1065-SMT-67 RDT RM RRD RTE RTF RW, COMAX S-1000 S-1000A S-2000A S-2050 S-4000 S-7000 S-8000 SA-5000 SA-7000 SBP SBS SC SC-2000 SD SD-1000 SD-2000 SDA SDB SH-7000 SLV SMR SMS SP SPA SRJ SRK SRM SS-10 SSH SSV STR STV TDA TDD TDP TDS WS-DISU WS-DISV WS-DITU WS-DITV WS-ROSV WS-ROTU WS-ROTV	- Bag Box Bulk Cut Tape (CT) Strip Tape & Box (TB) Tape & Reel (TR) Tray Tube	Active Discontinued at Masstock Electronics Last Time Buy Obsolete	- 10PST 3PST 4PST 4PST-2NO/2NC BCD BCD Complement BCD with Complement DP3T DPDT DPST DPST-NO/NC Gray Code Hexadecimal Hexadecimal Complement Hexadecimal with Complement Octal Octal Complement Programmable SP10T SP3T SP4T SP5T SP6T SP8T SP9T SPDT SPST	- 1 10 11 12 14 16 2 24 25 3 4 5 6 64 7 8 9	- 0.4VA 100mA 10mA 125mA 150mA 200mA 25mA 30mA 50mA 60mA	- 15VDC 16VAC/DC 16VDC 2.4VDC 20VAC/DC 20VDC 24VDC 25VDC 28VDC 30VDC 42VAC 42VAC/DC 42VDC 50VDC 5VDC 6VDC	- Breakable (Shunt) Flush Piano Rocker Rotary for Tool Rotary with Knob Rotary with Shaft Slide (Standard) Standard Toggle	- Flush Flush, Recessed Raised	- Beryllium Copper Brass Bronze Copper Copper Alloy Glass Fabric Epoxy Resin Nickel Phosphor Bronze Stainless Steel	- Gold Gold Alloy Silver Tin	- 0.053" (1.35mm) 0.057" (1.45mm) 0.059" (1.50mm) 0.060" (1.52mm) 0.061" (1.55mm) 0.062" (1.57mm) 0.063" (1.60mm) 0.064" (1.63mm) 0.067" (1.70mm) 0.079" (2.00mm) 0.081" (2.05mm) 0.083" (2.10mm) 0.087" (2.20mm) 0.089" (2.25mm) 0.091" (2.30mm) 0.091" (2.31mm) 0.093" (2.35mm) 0.094" (2.40mm) 0.098" (2.50mm) 0.100" (2.54mm) 0.102" (2.60mm) 0.104" (2.65mm) 0.106" (2.70mm) 0.110" (2.80mm) 0.112" (2.85mm) 0.114" (2.90mm) 0.118" (3.00mm) 0.119" (3.02mm) 0.120" (3.05mm) 0.122" (3.10mm) 0.123" (3.12mm) 0.125" (3.17mm) 0.126" (3.20mm) 0.130" (3.30mm) 0.134" (3.40mm) 0.136" (3.45mm) 0.138" (3.50mm) 0.140" (3.55mm) 0.141" (3.58mm) 0.142" (3.60mm) 0.143" (3.63mm) 0.144" (3.65mm) 0.144" (3.66mm) 0.146" (3.70mm) 0.148" (3.75mm) 0.149" (3.78mm) 0.150" (3.80mm) 0.150" (3.81mm) 0.151" (3.84mm) 0.152" (3.85mm) 0.154" (3.90mm) 0.155" (3.94mm) 0.157" (4.00mm) 0.159" (4.05mm) 0.160" (4.06mm) 0.161" (4.10mm) 0.162" (4.11mm) 0.163" (4.15mm) 0.164" (4.17mm) 0.165" (4.20mm) 0.166" (4.21mm) 0.167" (4.25mm) 0.168" (4.27mm) 0.169" (4.30mm) 0.170" (4.33mm) 0.173" (4.40mm) 0.174" (4.41mm) 0.175" (4.45mm) 0.176" (4.47mm) 0.177" (4.50mm) 0.178" (4.52mm) 0.179" (4.55mm) 0.180" (4.57mm) 0.181" (4.60mm) 0.183" (4.65mm) 0.184" (4.67mm) 0.185" (4.70mm) 0.189" (4.80mm) 0.190" (4.83mm) 0.195" (4.95mm) 0.196" (4.99mm) 0.197" (5.00mm) 0.199" (5.05mm) 0.200" (5.08mm) 0.201" (5.10mm) 0.203" (5.15mm) 0.204" (5.18mm) 0.205" (5.20mm) 0.209" (5.30mm) 0.210" (5.33mm) 0.211" (5.35mm) 0.213" (5.40mm) 0.214" (5.45mm) 0.215" (5.45mm) 0.215" (5.46mm) 0.217" (5.50mm) 0.219" (5.55mm) 0.220" (5.59mm) 0.222" (5.64mm) 0.224" (5.70mm) 0.225" (5.72mm) 0.226" (5.74mm) 0.228" (5.80mm) 0.230" (5.85mm) 0.232" (5.90mm) 0.236" (6.00mm) 0.244" (6.20mm) 0.246" (6.25mm) 0.250" (6.35mm) 0.252" (6.40mm) 0.256" (6.50mm) 0.258" (6.55mm) 0.260" (6.60mm) 0.262" (6.66mm) 0.264" (6.70mm) 0.265" (6.73mm) 0.267" (6.78mm) 0.268" (6.80mm) 0.268" (6.81mm) 0.270" (6.85mm) 0.271" (6.88mm) 0.272" (6.90mm) 0.273" (6.93mm) 0.274" (6.95mm) 0.275" (6.99mm) 0.276" (7.00mm) 0.277" (7.05mm) 0.278" (7.06mm) 0.280" (7.10mm) 0.283" (7.20mm) 0.284" (7.21mm) 0.287" (7.30mm) 0.290" (7.37mm) 0.291" (7.39mm) 0.291" (7.40mm) 0.292" (7.41mm) 0.293" (7.45mm) 0.294" (7.47mm) 0.295" (7.50mm) 0.297" (7.54mm) 0.298" (7.57mm) 0.299" (7.60mm) 0.301" (7.65mm) 0.303" (7.70mm) 0.305" (7.75mm) 0.307" (7.80mm) 0.308" (7.82mm) 0.309" (7.85mm) 0.311" (7.90mm) 0.312" (7.92mm) 0.315" (8.00mm) 0.316" (8.03mm) 0.317" (8.05mm) 0.319" (8.10mm) 0.321" (8.15mm) 0.322" (8.18mm) 0.327" (8.30mm) 0.329" (8.35mm) 0.330" (8.38mm) 0.331" (8.40mm) 0.334" (8.48mm) 0.335" (8.50mm) 0.337" (8.56mm) 0.340" (8.64mm) 0.343" (8.70mm) 0.344" (8.75mm) 0.346" (8.80mm) 0.354" (9.00mm) 0.358" (9.10mm) 0.359" (9.12mm) 0.360" (9.14mm) 0.362" (9.20mm) 0.370" (9.40mm) 0.374" (9.50mm) 0.378" (9.60mm) 0.380" (9.64mm) 0.381" (9.68mm) 0.385" (9.78mm) 0.386" (9.80mm) 0.390" (9.90mm) 0.393" (9.98mm) 0.394" (10.00mm) 0.394" (10.01mm) 0.395" (10.02mm) 0.398" (10.10mm) 0.400" (10.16mm) 0.402" (10.20mm) 0.406" (10.30mm) 0.409" (10.39mm) 0.413" (10.50mm) 0.414" (10.51mm) 0.417" (10.60mm) 0.420" (10.67mm) 0.425" (10.80mm) 0.426" (10.82mm) 0.430" (10.92mm) 0.433" (11.00mm) 0.434" (11.02mm) 0.437" (11.10mm) 0.460" (11.68mm) 0.463" (11.75mm) 0.464" (11.79mm) 0.465" (11.80mm) 0.467" (11.86mm) 0.469" (11.90mm) 0.470" (11.94mm) 0.472" (12.00mm) 0.480" (12.19mm) 0.495" (12.57mm) 0.508" (12.91mm) 0.520" (13.20mm) 0.531" (13.49mm) 0.535" (13.59mm) 0.543" (13.80mm) 0.555" (14.10mm) 0.618" (15.70mm) 0.626" (15.90mm) 0.634" (16.10mm) 0.638" (16.20mm) 1.104" (28.05mm) 1.476" (37.50mm)	- Panel Mount Panel Mount, Right Angle Surface Mount Surface Mount, Right Angle Through Hole Through Hole, Reverse Through Hole, Right Angle	- Gull Wing J Lead PC Pin	- 0.039" (1.00mm) 0.042" (1.08mm) 0.050" (1.27mm), Half 0.051" (1.30mm) 0.083" (2.10mm) 0.100" (2.54mm) 0.100" (2.54mm), Full 0.200" (5.08mm)	- No Yes	- Epoxy Sealed Terminals Epoxy Sealed Terminals, Tape Seal IP64 - Dust Tight, Water Resistant IP67 - Dust Tight, Waterproof Position Identification Line Position Identification Line, Tape Seal Process Sealed Sealed Sealed - Flux Protection Tape Seal	- -10°C ~ 60°C -10°C ~ 70°C -10°C ~ 85°C -20°C ~ 60°C -20°C ~ 70°C -20°C ~ 85°C -25°C ~ 70°C -25°C ~ 75°C -25°C ~ 80°C -25°C ~ 85°C -25°C ~ 95°C -30°C ~ 60°C -30°C ~ 80°C -30°C ~ 85°C -30°C ~ 90°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 80°C -40°C ~ 85°C -50°C ~ 125°C -55°C ~ 105°C -55°C ~ 125°C -55°C ~ 85°C -60°C ~ 125°C

全部重置

全部应用

结果

制造商料号	库存情况	价格	数量	数据手册	系列	包装	产品状态	电路	位置数量	电流额定值（安培）	电压额定值	执行器类型	执行器水平	触点材料	触点表面处理	板上高度	安装类型	端接样式	间距	可清洗	特性	工作温度
94HBB08T SWITCH ROTARY DIP OCTAL 0.1A 50V Grayhill Inc.	4,925	-	立即询价	数据手册	94H	Tube	Active	Octal	8	100mA	50VDC	Rotary with Shaft	Raised	Copper Alloy	Gold	0.495" (12.57mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	Sealed	-40°C ~ 85°C
94HCB08T SWITCH ROTARY DIP OCTAL 0.1A 50V Grayhill Inc.	4,862	-	立即询价	数据手册	94H	Tube	Active	Octal	8	100mA	50VDC	Rotary with Shaft	Raised	Copper Alloy	Gold	0.395" (10.02mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	Sealed	-40°C ~ 85°C
94HCB10T SWITCH ROTARY DIP BCD 0.1A 50V Grayhill Inc.	949	-	立即询价	数据手册	94H	Tube	Active	BCD	10	100mA	50VDC	Rotary with Shaft	Raised	Copper Alloy	Gold	0.395" (10.02mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	Sealed	-40°C ~ 85°C
PT65101 SWITCH ROTARY DIP BCD 0.15A 24V APEM Inc.	6,734	-	立即询价	数据手册	PT65	Tube	Active	BCD	10	150mA	24VDC	Rotary for Tool	Flush, Recessed	Phosphor Bronze	Gold	0.256" (6.50mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	Sealed - Flux Protection	-20°C ~ 70°C
416131160810 SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik	1,793	-	立即询价	数据手册	WS-DISV	Tape & Reel (TR)	Active	SPST	10	25mA	24VDC	Slide (Standard)	Flush, Recessed	-	Gold	0.098" (2.50mm)	Surface Mount	Gull Wing	0.050" (1.27mm), Half	Yes	Tape Seal	-40°C ~ 85°C
PT65112 SWITCH ROTARY DIP BCD 0.15A 24V APEM Inc.	7,261	-	立即询价	数据手册	PT65	Tube	Active	BCD	4	150mA	24VDC	Rotary for Tool	Flush, Recessed	Phosphor Bronze	Gold	0.256" (6.50mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	Sealed - Flux Protection	-20°C ~ 70°C
A6CV-16R SWITCH ROTARY DIP HEX 0.1A 30V Omron Electronics Inc-EMC Div	3,645	-	立即询价	数据手册	A6C	Bulk	Active	Hexadecimal	16	100mA	30VDC	Rotary for Tool	Flush, Recessed	-	-	0.358" (9.10mm)	Through Hole, Right Angle	PC Pin	0.100" (2.54mm), Full	No	IP64 - Dust Tight, Water Resistant	-20°C ~ 70°C
94HAB08RAT SWITCH ROTARY DIP OCTAL 0.1A 50V Grayhill Inc.	4,159	-	立即询价	数据手册	94H	Tube	Active	Octal	8	100mA	50VDC	Rotary for Tool	Flush, Recessed	Copper Alloy	Gold	0.400" (10.16mm)	Through Hole, Right Angle	PC Pin	0.100" (2.54mm), Full	Yes	Sealed	-40°C ~ 85°C
94HBB10RAT SWITCH ROTARY DIP BCD 0.1A 50V Grayhill Inc.	2,570	-	立即询价	数据手册	94H	Tube	Active	BCD	10	100mA	50VDC	Rotary with Shaft	Raised	Copper Alloy	Gold	0.400" (10.16mm)	Through Hole, Right Angle	PC Pin	0.100" (2.54mm), Full	Yes	Sealed	-40°C ~ 85°C
94HAB10RAT SWITCH ROTARY DIP BCD 0.1A 50V Grayhill Inc.	1,034	-	立即询价	数据手册	94H	Tube	Active	BCD	10	100mA	50VDC	Rotary for Tool	Flush, Recessed	Copper Alloy	Gold	0.400" (10.16mm)	Through Hole, Right Angle	PC Pin	0.100" (2.54mm), Full	Yes	Sealed	-40°C ~ 85°C
A6KS-164RS SWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div	315	-	立即询价	数据手册	A6KS	Tube	Active	Hexadecimal	16	25mA	24VDC	Rotary with Shaft	Raised	-	Gold	0.236" (6.00mm)	Surface Mount	Gull Wing	0.050" (1.27mm), Half	No	-	-30°C ~ 80°C

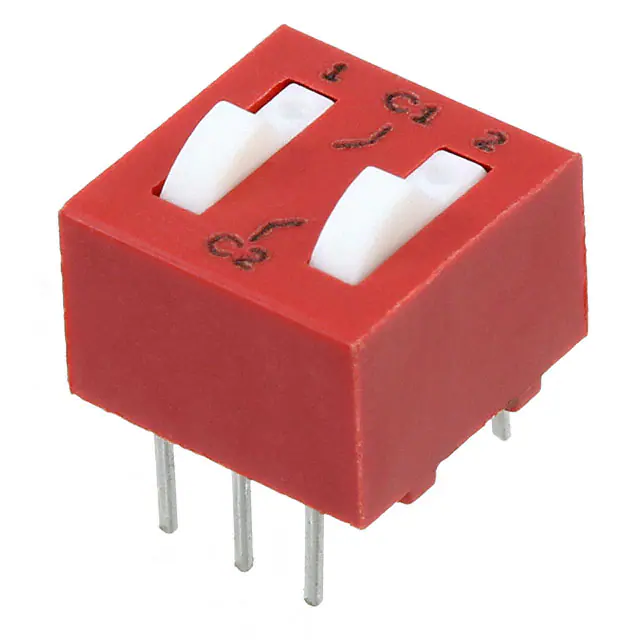

76SC02T SWITCH ROCKER DIP SPDT 0.15A 30V Grayhill Inc.	721	-	立即询价	数据手册	76	Tube	Active	SPDT	2	150mA	30VDC	Rocker	Raised	Copper Alloy	Gold	0.315" (8.00mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	No	-	-40°C ~ 85°C
76STD01T SWITCH TOGGLE DIP DPDT 0.15A 30V Grayhill Inc.	1,701	-	立即询价	数据手册	76	Tube	Active	DPDT	1	150mA	30VDC	Toggle	Raised	Copper Alloy	Gold	0.467" (11.86mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	No	-	-40°C ~ 85°C
76SD01T SWITCH ROCKER DIP DPDT 0.15A 30V Grayhill Inc.	132	-	立即询价	数据手册	76	Tube	Active	DPDT	1	150mA	30VDC	Rocker	Raised	Copper Alloy	Gold	0.315" (8.00mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	No	-	-40°C ~ 85°C

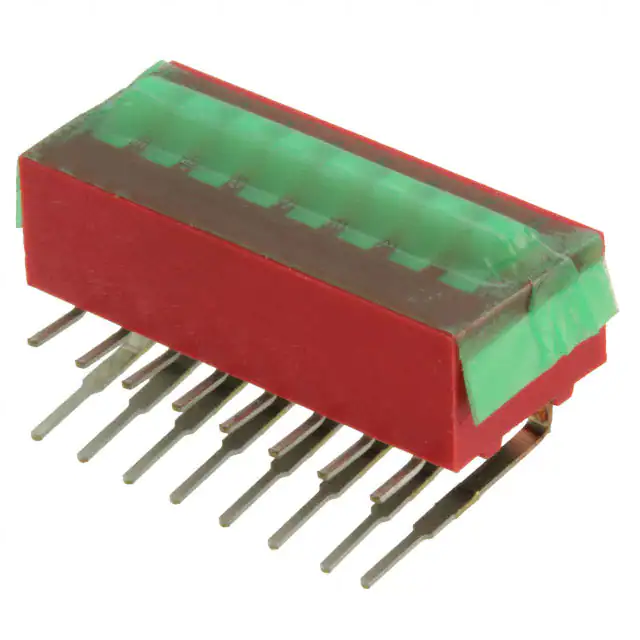

78B08SRAT SWITCH SLIDE DIP SPST 0.15A 30V Grayhill Inc.	1,449	-	立即询价	数据手册	78	Tube	Active	SPST	8	150mA	30VDC	Slide (Standard)	Raised	Copper Alloy	Gold	0.380" (9.64mm)	Through Hole, Right Angle	PC Pin	0.100" (2.54mm), Full	Yes	Tape Seal	-40°C ~ 85°C
A6A-10RS SWITCH ROTARY DIP BCD 0.1A 28V Omron Electronics Inc-EMC Div	2,557	-	立即询价	数据手册	A6A	Bulk	Active	BCD	10	100mA	28VDC	Rotary with Shaft	Raised	-	-	0.531" (13.49mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	IP64 - Dust Tight, Water Resistant	-10°C ~ 70°C
CRD16CM0SBR SW ROTARY DIP HEX COMP 0.4VA 20V C&K	5,614	-	立即询价	数据手册	CRD	Tape & Reel (TR)	Active	Hexadecimal Complement	16	0.4VA	20VAC/DC	Rotary for Tool	Flush, Recessed	Beryllium Copper	Gold	0.271" (6.88mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	Yes	Process Sealed	-20°C ~ 85°C
A6KSV-104RF-R100 SWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div	1,100	-	立即询价	数据手册	A6KS	Tape & Reel (TR)	Active	BCD	10	25mA	24VDC	Rotary for Tool	Flush, Recessed	-	Gold	0.293" (7.45mm)	Surface Mount, Right Angle	Gull Wing	0.050" (1.27mm), Half	No	-	-30°C ~ 80°C
A6KS-162RF SWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div	102	-	立即询价	数据手册	A6KS	Tube	Active	Hexadecimal	16	25mA	24VDC	Rotary for Tool	Flush, Recessed	-	Gold	0.118" (3.00mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	-	-30°C ~ 80°C
CRD16RM0SB SWITCH ROTARY DIP HEX 0.4VA 20V C&K	7,478	-	立即询价	数据手册	CRD	Tube	Active	Hexadecimal	16	0.4VA	20VAC/DC	Rotary for Tool	Flush, Recessed	Beryllium Copper	Gold	0.271" (6.88mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	Yes	Process Sealed	-20°C ~ 85°C
